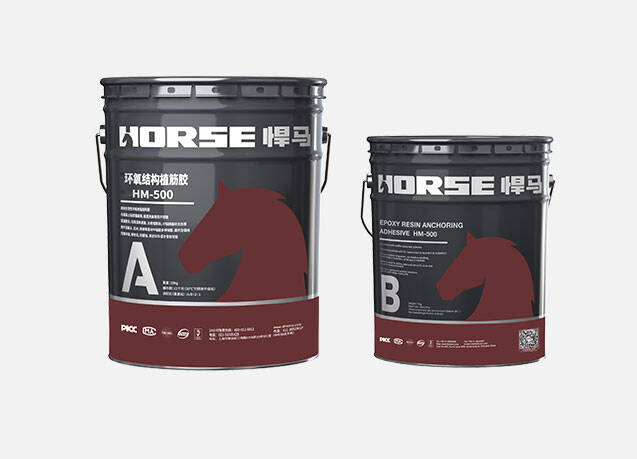

Part A (Epoxy): 20kg
Part B (Hardener): 10kg
Density:1.6±0.1g/cm³
Mix Ratio: Part A: Part B=2:1
Barrel A Size: 30*30*37cm
Barrel B Size: 25*25*29cm

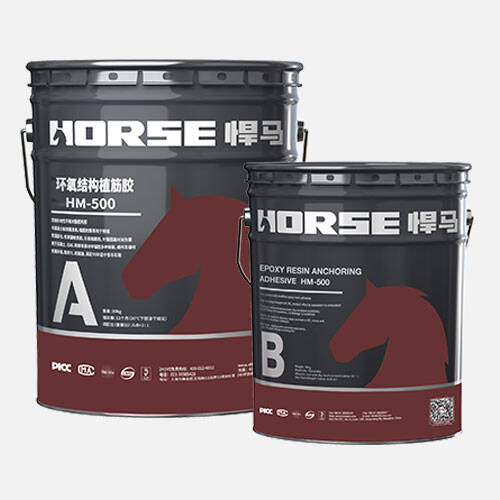

HM-500 Structure Anchor Adhesive is a two-component modified epoxy resin adhesive, mainly applied to chemical planting reinforcing bar, the anchor bolt anchoring, crack repairing, various types of concrete structure reinforcing, and widely used in construction projects, highway repair, engineer rush-repair and other aspects.
• Technical data sheet:
• Technical data sheet:
• Modified epoxy resin, high strength, corrosion resistance, acid-alkali resistance, aging resistance;
• Modified epoxy resin, high strength, corrosion resistance, acid-alkali resistance, aging resistance;

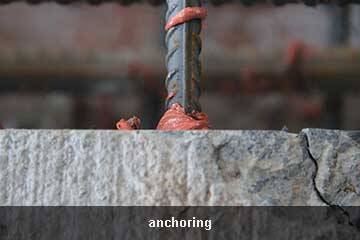

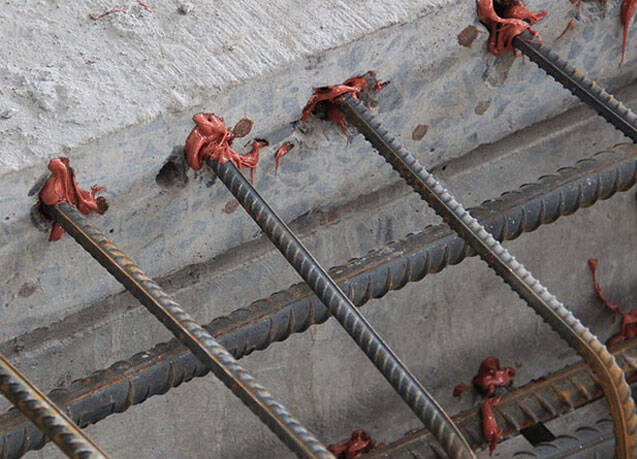

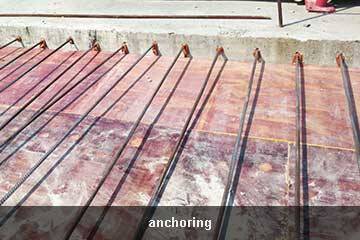

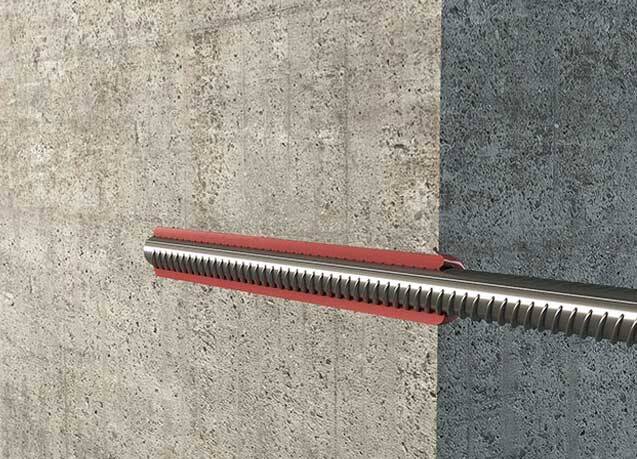

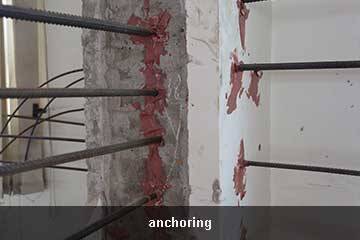

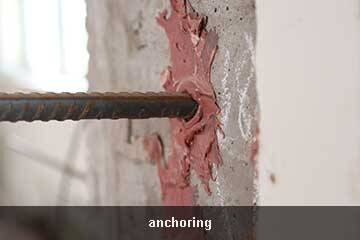

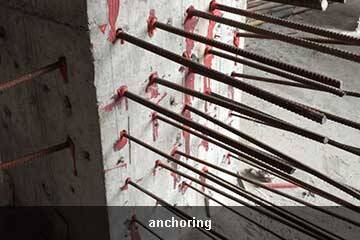

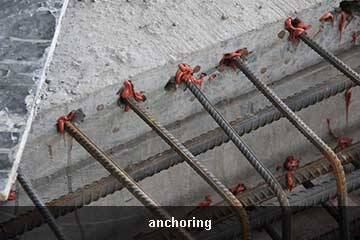

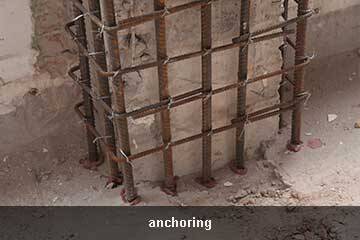

• The steel bar planting and the anchor bolt anchoring of many kinds of building structures, the reinforcement of engineering buildings;
• The steel bar planting and the anchor bolt anchoring of many kinds of building structures, the reinforcement of engineering buildings;
• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.
• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.
• Mix proper quantity, use up in the applicable period.
• Mix proper quantity, use up in the applicable period.
Documents Download
HM- 500 injection epoxy anchoring ↓
• Application video:
HM-500
• Brochure:
Anchoring system ↓
Documents Download
HM- 500 injection epoxy anchoring ↓
• Application video:
HM-500
• Brochure:
Anchoring system ↓
Key Characteristics
• Curing at room temperature, easy to install;
• Wide adhesive range, such as concrete, stone materials and metals;
• No expansion or contraction after curing, no destroy to substrate;
• Environment friendly, non-toxic, do not contain volatile solvents.
Key Characteristics
• Curing at room temperature, easy to install;
• Wide adhesive range, such as concrete, stone materials and metals;
• No expansion or contraction after curing, no destroy to substrate;
• Environment friendly, non-toxic, do not contain volatile solvents.
Application Range
• The basic anchoring of many equipments, the anchoring and supporting of mine tunnel top and wall, the anchoring of railways and rails;
• The insulation anchoring of rails, the installation anchoring of curtain walls, chemical engineering equipments, pipelines, advertisement boards and so on;

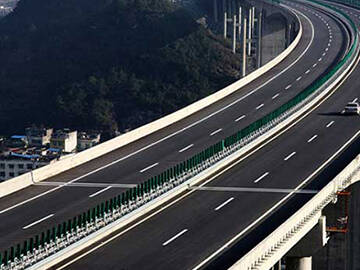

• The anchoring of water conservancy facilities, docks, public roads, bridges and other projects.
Application Range
• The basic anchoring of many equipments, the anchoring and supporting of mine tunnel top and wall, the anchoring of railways and rails;
• The insulation anchoring of rails, the installation anchoring of curtain walls, chemical engineering equipments, pipelines, advertisement boards and so on;
• The anchoring of water conservancy facilities, docks, public roads, bridges and other projects.
Transportation and Storage
• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials
Transportation and Storage
• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials
Attention Points
• If there is any left, the lids of A B should be covered. Do not expose it in the air.
• Construction workers should take certain protective measures.
• The construction environment should be kept ventilated during construction.
• Avoid direct sunlight and high temperature.
Attention Points
• If there is any left, the lids of A B should be covered. Do not expose it in the air.
• Construction workers should take certain protective measures.
• The construction environment should be kept ventilated during construction.
• Avoid direct sunlight and high temperature.
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-500 Injection Anchoring Adhesive
| HM-500 Structure Anchor Adhesive Performance Parameters | |

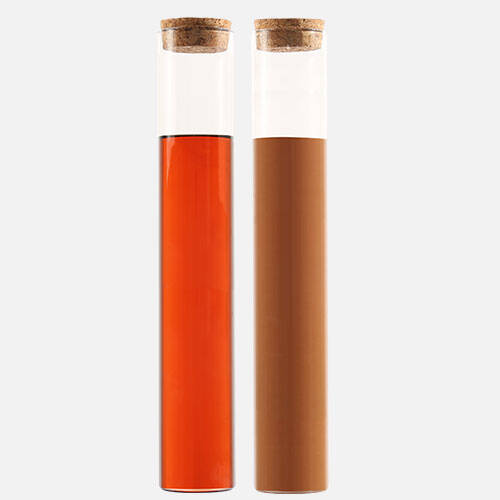

| Appearance | A（main agent）: red or white paste |
| B（curing agent）: brown paste | |
| Viscosity of mixture | ≥22Pa·s |
| Density of curing material | 1.60±0.10g/cm3 |
| Mixture ratio（weight ratio） | 2:1 |
| Storage period | twelve months |
| HM-500 Structure Anchor Adhesive Operable time and curing time | |||||
| Ambient temperature（℃） | -5 | 0 | 10 | 20 | ≥30 |
| Operable time（min） | 60 | 45 | 30 | 25 | 20 |
| Curing time（h） | 72 | 48 | 24 | 12 | 6 |
| HM-500 Structure Anchor Adhesive Performance indexes | ||||
| item | index | item | index | |
Colloidal performance | Splitting tensile strength（MPa） | ≥8.5 | Thixotropic index | ≥4.0 |
| Bending Strength（MPa） | ≥50 | Sagging mobility | ≤2.0mm | |
| Compressive strength（MPa） | ≥60 | Distortion temperature | ≥65℃ | |
Adhesion performance | Steel-steel（steel sleeve）tensile anti-shear strength（MPa） | ≥10 | ||
Under the constraint drawing condition, ribbed steel bars and C30, φ25, L=150mm（MPa） | ≥11 | |||
| Adhesion strength of concrete C60, φ25, L=125mm（MPa） | ≥17 | |||
| Steel-steel T impact stripping length | ≤25mm | |||
| Non-volatile matter content（solid content）（%） | ≥99 | |||
Long-term performance | Wet and heat ageing resistance ability | Compared with the short-term results at room temperature, the decrease rate of shear strength:≤12% | ||
| Heat aging resistance | Compared with the short-term results at same temperature 10min, the decrease rate of shear strength: ≤5% | |||
Freezing and thawing resistance ability | Compared with room temperature, short-term results, the shear strength decrease rate is not greater than 5% | |||
Fatigue stress resistance ability | After2×106 times continuous sine wave fatigue loads, specimen does not destroy | |||
Resistance to stress for a long time | Steel - steel tensile shear specimens does not destroy, and creep deformation value is less than 0.4 mm | |||
Resistance to corrosion medium | Resistance to salt fog effect | Compared with the control group, the strength decrease rate: ≤5%, and shall not have cracks or come unglued | ||
Alkaline medium resistance ability | Compared with the control group, the strength does not decrease, and as the concrete damage, and shall not have cracks or come unglued | |||
Acid medium resistance ability | Concrete damage, and shall not have cracks or degumming | |||
