Horse Construction offers full range of structural strengthening materials with technical supports, documentation supports, products supports, project supports.

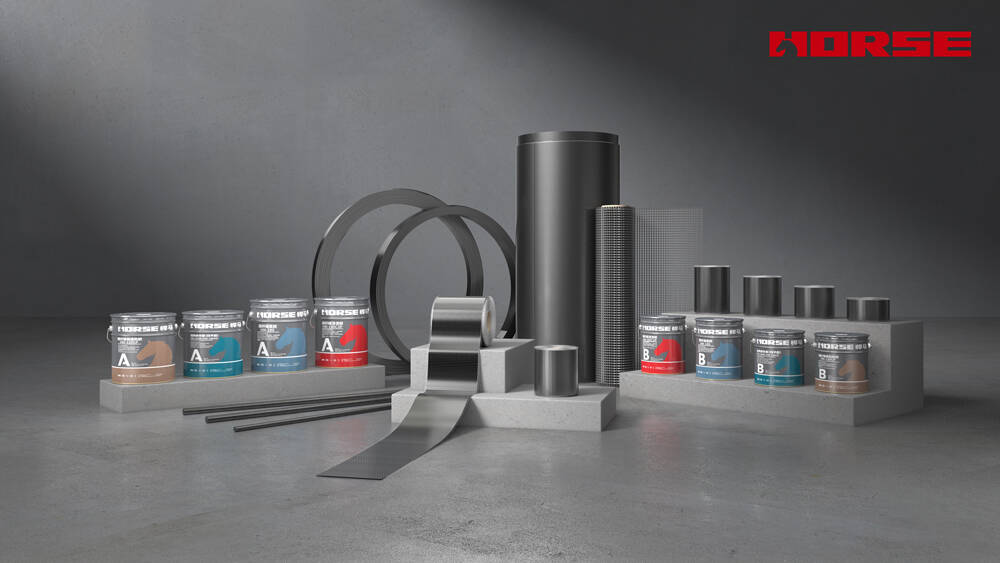

In the field of structural strengthening, carbon fiber strengthening materials have become the first choice for engineers and construction teams due to their outstanding properties such as high strength, light weight, corrosion resistance, and easy construction. As a professional supplier of structural strengthening materials, Horse Construction is committed to providing a full range of high-quality carbon fiber structural strengthening materials to meet the diverse needs of various construction projects.
Our carbon fiber sheet is made of high-quality PAN-based carbon fiber dry filaments and hot-melt threads, processed through precision weaving technology. It is not impregnated, maintaining the original state of dry fiber bundles. It features ultra-high tensile strength (far higher than ordinary steel), excellent fatigue resistance, and superior flexibility. As a flexible dry reinforcement material, it is mainly used for the reinforcement of concrete structures such as beams, slabs, columns, and walls, especially suitable for scenarios where the appearance of the structure needs to be preserved, the construction space is limited, or the structure has irregular shapes that require close fitting. The light weight of the carbon fiber fabric ensures that it will not significantly increase the self-weight of the original structure, while its excellent corrosion resistance allows it to be used in harsh environments such as humidity and corrosion, maintaining long-term stability. The dry fiber structure also enables it to be fully impregnated with carbon fiber adhesive during construction, ensuring firm bonding with the concrete base.
2. Carbon Fiber Laminate
Carbon fiber laminate (also known as carbon fiber plate) is a prefabricated composite material made of carbon fiber and high-performance epoxy resin through hot pressing and curing. It has the advantages of high rigidity, stable performance, and easy cutting. Compared with carbon fiber sheet, it has higher bearing capacity and is suitable for the reinforcement of structures that need to bear large loads, such as bridge beams, industrial plant beams, and high-rise building columns. Our carbon fiber laminates are available in various thicknesses and widths, which can be customized according to the actual needs of the project to ensure perfect matching with the original structure.
3. Carbon Fiber Grid
Carbon fiber grid is a new type of structural strengthening material with a grid-like structure, composed of carbon fiber yarns and epoxy resin. It has excellent tensile strength and shear resistance, and can effectively improve the crack resistance and durability of concrete structures. It is widely used in the reinforcement of concrete slabs, pavements, and retaining walls, as well as the repair of old building structures. The grid structure allows the material to evenly distribute stress, avoiding local stress concentration, and further improving the overall stability of the structure.
4. Carbon Fiber Jackets
Carbon fiber jackets are specially designed for the reinforcement of circular or rectangular columns. They are made of high-strength carbon fiber cloth and special impregnating adhesive, which can be closely attached to the surface of the column after wrapping. By restricting the lateral expansion of the column, the compressive strength and ductility of the column are significantly improved, effectively preventing the column from being damaged due to overload or seismic action. Our carbon fiber jackets are easy to construct, require no large-scale equipment, and can be quickly installed, greatly shortening the construction period.
5. Carbon Fiber Rebar
Carbon fiber rebar is a new type of reinforcement material that replaces traditional steel rebar. It has the characteristics of light weight (only 1/4 of steel), high strength (3-5 times that of ordinary steel), and complete corrosion resistance. It is suitable for projects in harsh environments such as coastal areas, chemical plants, and sewage treatment plants, where traditional steel rebar is prone to rust and damage. Carbon fiber rebar can be used in the reinforcement of concrete structures such as beams, slabs, and columns, and can also be used in the construction of new structures, effectively extending the service life of the project.

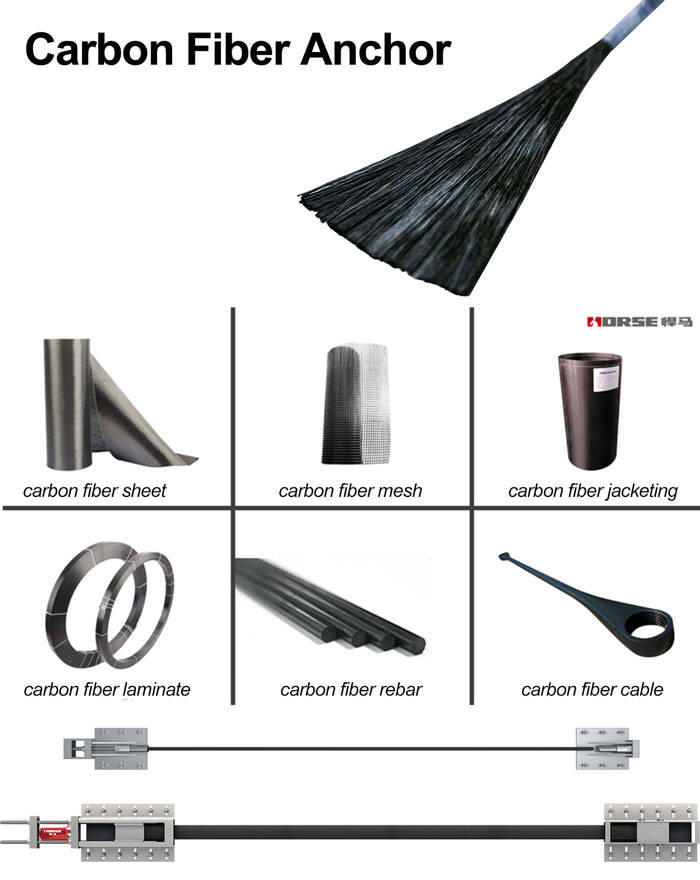

6. Carbon Fiber Anchor
Carbon fiber anchor is a supporting product for carbon fiber material reinforcement, used to fix carbon fiber sheets, laminates, or grids to the original structure, ensuring the stability of the bonding interface. It is made of high-strength carbon fiber and epoxy resin, with strong pull-out force and good compatibility with various structural materials. Our carbon fiber anchors are available in various specifications, which can be selected according to the thickness of the carbon fiber material and the strength of the original structure, effectively preventing the detachment of the carbon fiber material and ensuring the reinforcement effect.
7. Carbon Fiber Cable
Carbon fiber cable is a high-performance load-bearing material, which is made of carbon fiber bundles and special protective layers. It has the advantages of high tensile strength, light weight, corrosion resistance, and low creep. It is mainly used in large-span structures such as bridges, stadiums, and industrial plants, used to bear the main load of the structure and improve the span and bearing capacity of the structure. Compared with traditional steel cables, carbon fiber cables have longer service life and lower maintenance costs, which can significantly reduce the later operation and maintenance costs of the project.
8. Carbon Fiber Adhesive
As a core supporting material in the carbon fiber strengthening system, our carbon fiber adhesive is a high-performance two-component epoxy adhesive, specially developed for the bonding between carbon fiber materials and concrete structures. It has strong bonding strength, good toughness, and excellent weather resistance. It can effectively bond carbon fiber sheets, laminates, and other materials to the surface of the concrete structure, ensuring that the carbon fiber material and the original structure work together. The adhesive is easy to mix and construct, and can adapt to different construction temperatures, meeting the needs of various on-site construction scenarios. In addition, we also provide supporting primer and leveling adhesive to further improve the bonding effect and ensure the quality of the reinforcement project.
Why Choose Horse Construction Carbon Fiber Materials?
Horse Construction has always adhered to the principle of "quality first, customer-oriented", and all carbon fiber materials have passed strict quality testing and meet the relevant national and industry standards. We have a professional R&D team and production base, which can provide customized solutions according to the specific needs of customers, and provide comprehensive technical support and after-sales service throughout the project. Whether it is a small-scale local reinforcement project or a large-scale overall strengthening project, our carbon fiber material system can provide you with reliable, efficient, and cost-effective solutions.
If you have any questions about our carbon fiber materials, or need to know more about the application of each product in specific projects, please feel free to contact us.
Contact Us
Horse Construction Recommended Products
You can find anything here you are in need of, have a trust trying on these products, you will find the big difference after that.
High strength, unidirectional carbon fiber wrap pre-saturated to form a carbon fiber reinforced polymer (CFRP) wrap used to strengthen structural concrete elements.
Prestressed carbon fiber reinforced polymer(CFRP) plate for slab, beam strengthening to increase stiffness, reduce distortion and deflection of members, reduce the cracks, avoid and stop cracking.
