Part A (Epoxy): 20kg
Part B (Hardener): 10kg
Mix Ratio: Part A: Part B=2:1
Consumption Ratio: 6-7kg/sqm
Barrel A Size: 30*30*37cm
Barrel B Size: 25*25*29cm

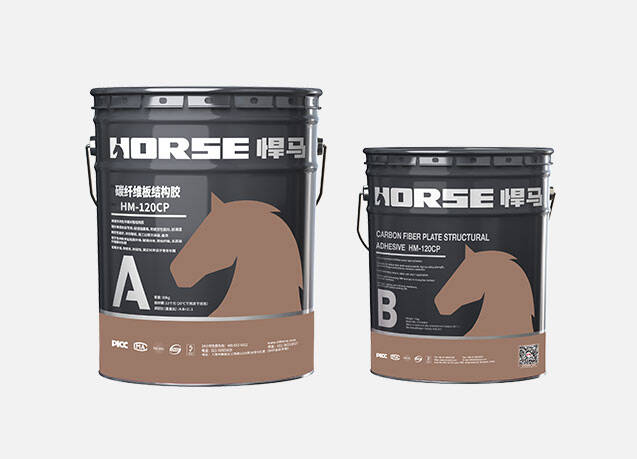

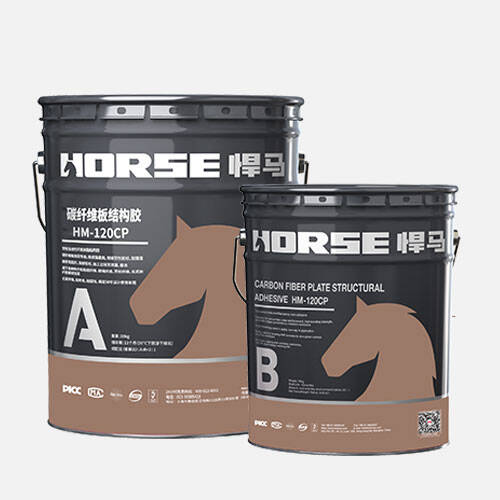

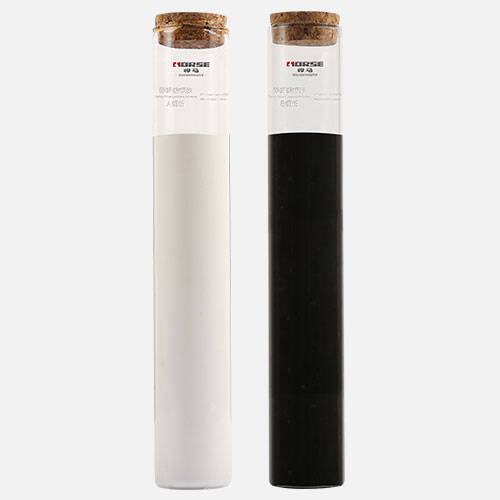

Horse HM-120CP carbon fiber plate adhesive is double component epoxy based adhesive with strong bonding strength, shear strength, anti-aging strength. It is an product used for carbon fiber plate bonding in reinforcement.
• Technical data sheet:
• Technical data sheet:
• Double component bidphenol-A modified epoxy resin based adhesive, non-hydrophilic, high bonding strength, water proof, anti-cprrpsion, environmental-friendly;
• Double component bidphenol-A modified epoxy resin based adhesive, non-hydrophilic, high bonding strength, water proof, anti-cprrpsion, environmental-friendly;

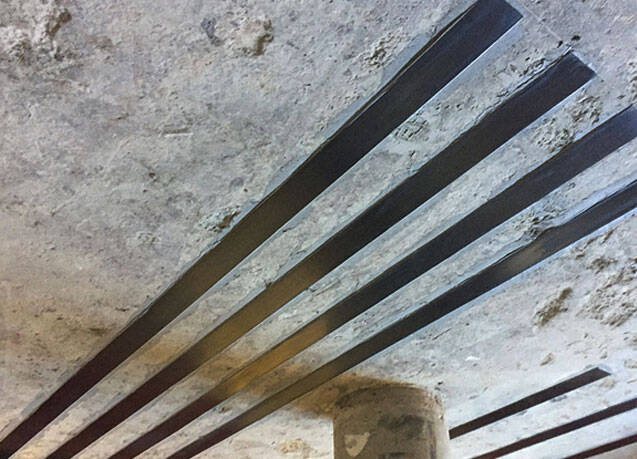

• Use together with Horse carbon fiber plate to fix on concrete surface
• Use together with Horse carbon fiber plate to fix on concrete surface
• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.
• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.
• Mix proper quantity, use up in the applicable period.
• Mix proper quantity, use up in the applicable period.
Documents Download
HM- 120CP CFRP strip adhesive ↓
• Brochure:
Horse FRP strengthening system ↓
• Software:
Horse FRP Software ↓
Documents Download
HM- 120CP CFRP strip adhesive ↓
• Brochure:
Horse FRP strengthening system ↓
• Software:
Horse FRP Software ↓
Characteristics of HM-120CP Epoxy
• Application in wide temperature scope;
• Excellent acid/alkali resistance and aging resistance, low moisture sensitivity.
Characteristics of HM-120CP Epoxy
• Application in wide temperature scope;
• Excellent acid/alkali resistance and aging resistance, low moisture sensitivity.
Application Range

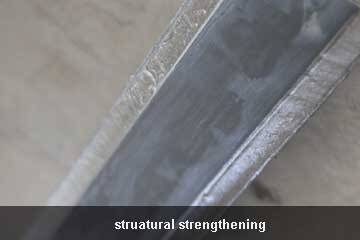

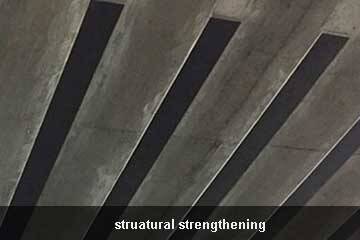

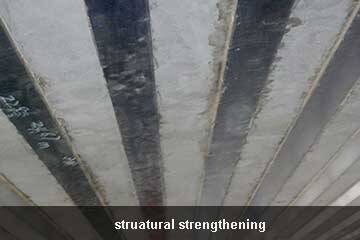

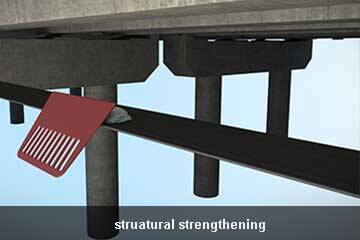

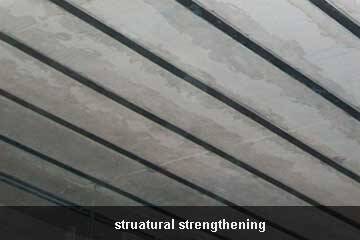

• Used for structure reinforcement with Horse pre-stress carbon fiber laminate system
Application Range
• Used for structure reinforcement with Horse pre-stress carbon fiber laminate system
Transportation and Storage
• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials
Transportation and Storage
• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials
Attention Points
• If there is any left, the lids of A B should be covered. Do not expose it in the air.
• Construction workers should take certain protective measures.
• The construction environment should be kept ventilated during construction.
• Avoid direct sunlight and high temperature.
Attention Points
• If there is any left, the lids of A B should be covered. Do not expose it in the air.
• Construction workers should take certain protective measures.
• The construction environment should be kept ventilated during construction.
• Avoid direct sunlight and high temperature.
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-MJ50/100 Prestressed CFRP Plate System
Horse CFRP Plate adhesive Date Sheet
HM120CP Epoxy Adhesive for Carbon Fiber Plate1.pdf
| Technical Parameters | |
| Appearance | Part A Grey Part B White |
| Density after curing | 1.6 g/cm3 |
| Mixture Ratio (By weight) | 2:1 |
| Operation time | 30 min |
| Shelf life | 12 months |
| Mechanical Properties | ||
| item | index | |
| Colloidal Performance | Tensile Strength（MPa） | ≥30 |
| Tensile Elastic Modulus（MPa） | ≥3500 | |
| Elongation（%） | ≥1.3 | |
| Bending Strength（MPa） | ≥45 | |
| Compressive Strength（MPa） | ≥65 | |
| Bonding Properties | Steel- Steel Shear Strength（MPa） | ≥15 |
| Steel- Steel Shear Strength（MPa） | ≥16 | |
| Steel- Steel Bonding Strength（MPa） | ≥33 | |
| Bonding Strength with Concrete（MPa） | ≥2.5 | |
| Nonvolatile Content（Solid Content)（%） | ≥99 | |
HM-120CP Carbon Plate Adhesive Install
1.Setting out according to designing;
2.Polish the surface of concrete surface to remove painting of the surface, blow out the floating dust with compressed air;
3.Prepace ingredients: agitate component A and B evenly in packaging bucket by weighting in accordance with the weight ratio A:B=2:1;

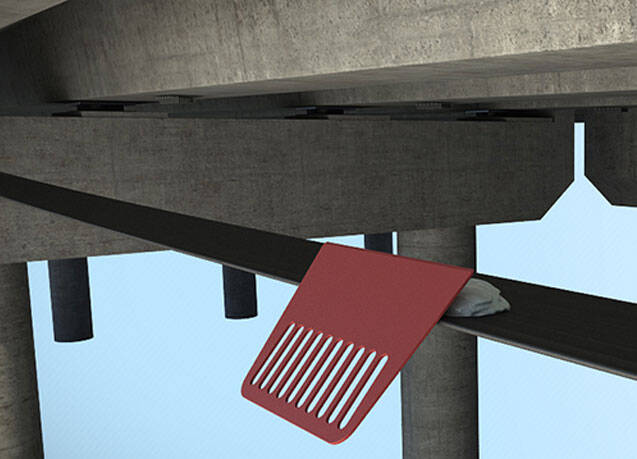

4.Installing: Past the above mixed glue compounds onto the surface of carbon fiber plate evenly, please avoid bubbles;

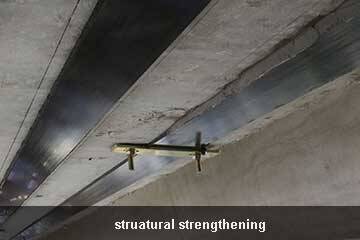

5.Anchorage: paste the carbon fiber plate onto the concrete surface and fixed with steel srtip, remove excessive glue conpounds around, and fix With Steel framework;
6.Maintenace: conservation time should be no less than 24 hours at room temperature.
