Part A (Epoxy): 20kg
Part B (Hardener): 10kg
Mix Ratio: Part A: Part B=2:1
Barrel A Size: 30*30*37cm
Barrel B Size: 25*25*29cm

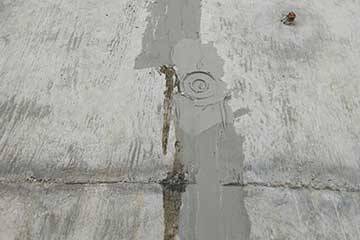

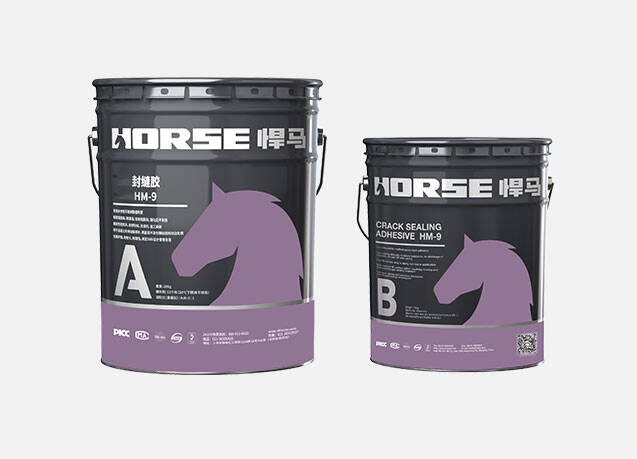

HM-9 carck sealing adhesive is a two-component modified epoxy resin adhesive, often used with pouring crack adhesive for crack sealing and injection nozzle fixing.
• Belong to modified epoxy resin, high initial adhesive force;
• Belong to modified epoxy resin, high initial adhesive force;

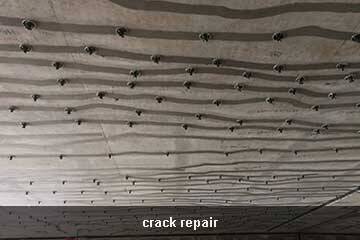

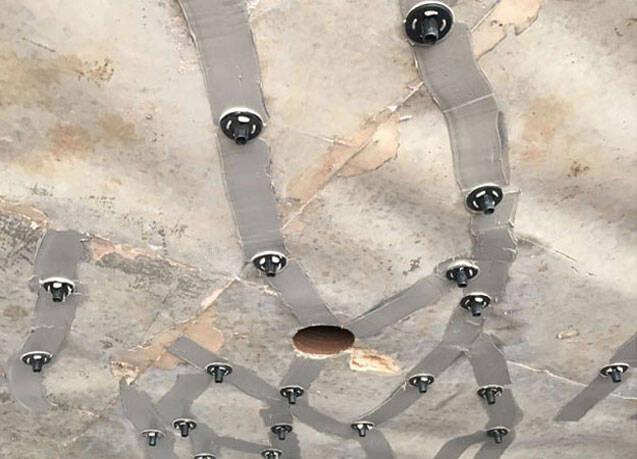

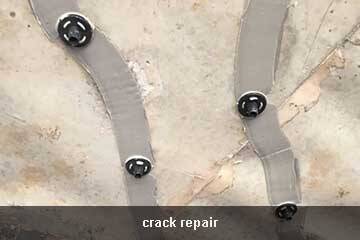

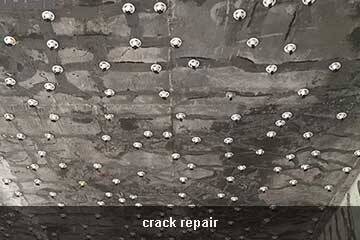

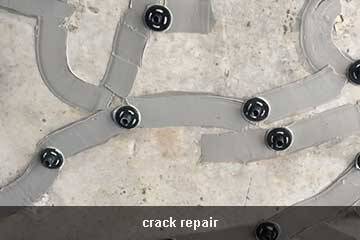

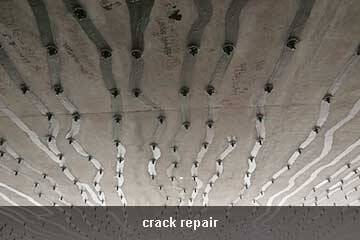

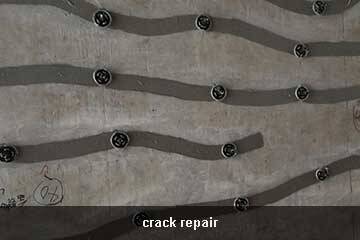

• Use with HM-120M steel jacketing adhesive, HM-120L injection crack adhesive. Used for grouting and repairing the concrete cracks and installing grouting nozzle.
• Use with HM-120M steel jacketing adhesive, HM-120L injection crack adhesive. Used for grouting and repairing the concrete cracks and installing grouting nozzle.
• Store in dry and clear store house of ambient temperature 5-25℃,should not pile up in the open air or rain,not damage the package.A,B component should be kept separate to avoid mixing.From the date of production, effective storage period is 12 months.
• Store in dry and clear store house of ambient temperature 5-25℃,should not pile up in the open air or rain,not damage the package.A,B component should be kept separate to avoid mixing.From the date of production, effective storage period is 12 months.
• Construction environment is dry and ventilated, paste surface is clean,dry and free of oil;curing ambient temperature is not less than 5℃; curing time can be adjusted according to the difference of specific uses.
• Construction environment is dry and ventilated, paste surface is clean,dry and free of oil;curing ambient temperature is not less than 5℃; curing time can be adjusted according to the difference of specific uses.
Characteristics of Adhesive
• Curing at room temperature, proper curing speed;
• High strength, good aging resistance and chemical resistance properties;
• No shrinkage after curing;
• Very strong thixotropic property, easy to apply;
• Wide proportion of preparing glue, easy to control operational time.
Characteristics of Adhesive
• Curing at room temperature, proper curing speed;
• High strength, good aging resistance and chemical resistance properties;
• No shrinkage after curing;
• Very strong thixotropic property, easy to apply;
• Wide proportion of preparing glue, easy to control operational time.
Application Range
• In the process of pouring and pasting steel plate construction, seal the gap.

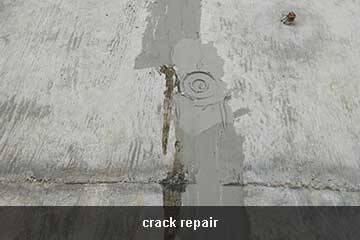

• Concrete surface defect repair and levelling, etc.
Application Range
• In the process of pouring and pasting steel plate construction, seal the gap.
• Concrete surface defect repair and levelling, etc.
Transportation and Storage
• The crack repair adhesive belong to non-dangerous goods,transport as a general chemical building materials,should not damage the package,exposure ,or rain,not tilt or invert in transportation.
Transportation and Storage
• The crack repair adhesive belong to non-dangerous goods,transport as a general chemical building materials,should not damage the package,exposure ,or rain,not tilt or invert in transportation.
Attention Points
• The workers should take necessary product measures,such as wearing mask, gloves, goggles, etc. Notice fire prevention and maintain good ventilation on scene.
• If accidentally swallowed or splashed into the eyes, please seek medical service at once.
Attention Points
• The workers should take necessary product measures,such as wearing mask, gloves, goggles, etc. Notice fire prevention and maintain good ventilation on scene.
• If accidentally swallowed or splashed into the eyes, please seek medical service at once.
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-120L Crack Injection Resin
HM-9 Crack Sealing Adhesive Technical Data Sheet.pdf
| Carck Repair Adhesive Technical Parameters | ||||

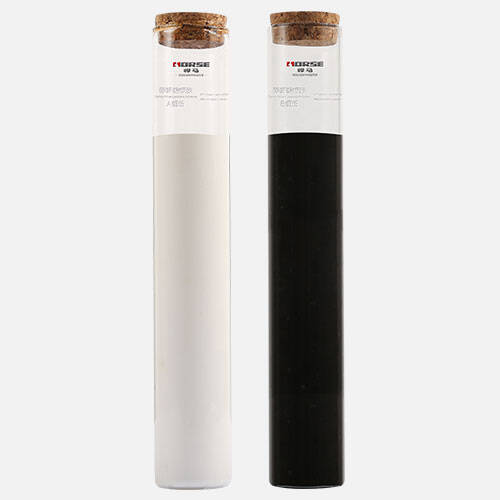

| Physical performance | Appearance | Component A | Stringy paste body | |
| Component B | Stringy paste body | |||
| Adhesion performance | Steel-steel adhesion anti-shear strengt (MPa) | 25℃ | Two days | ≥14 |
| Steel-steel adhesion tensile strength(MPa) | 25℃ | Two days | ≥18 | |
| Steel-concrete(C30) abti-shear strength(MPa) | 25℃ | Two days | Concrete(30) damage | |
Steel-concrete(C30) tensile strength(MPa) | 25℃ | Two days | Concrete(30) damage | |
| Durability | Shear strength of artificial aging | 2000h | Strength decrease 10% | |
| Steel-C45 concrete pulling bonding strength | ≥2.5Mpa, and concrete cohesion damage | |||
| Carck Repair Adhesive Performance indexes | ||
| item | index | |
| Colloidal performance | Tensile strength (MPa) | ≥38 |
| Bending strength (MPa) | ≥50, Not cataclastic destruction | |
| Compressive strength (MPa) | ≥70 | |
| Tensile elastic modulus (MPa) | ≥2.4×103 | |
| Elongation (%) | ≥1.5 | |
| Non-volatile matter content(%) | ≥99 | |

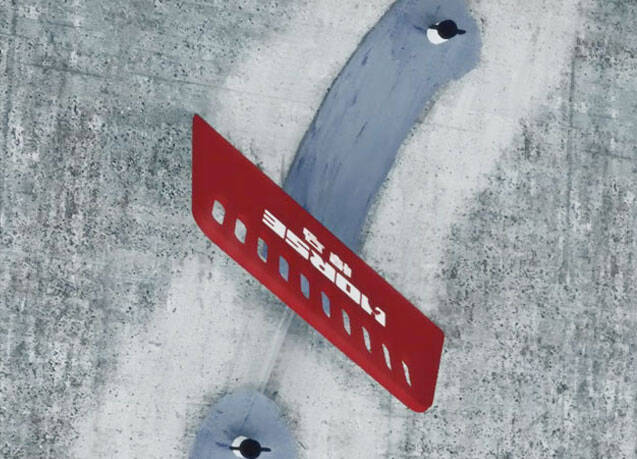

Carck Repair Adhesive Operation Process
1.clean surface
2.prepare crack glue
3.paste to crack concrete
4.curing
