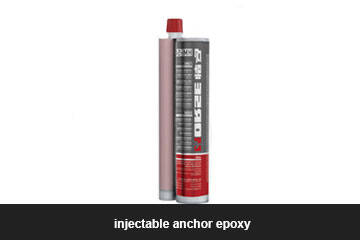

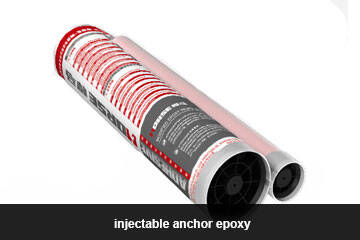

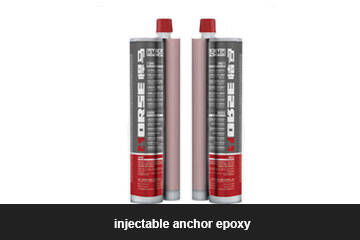

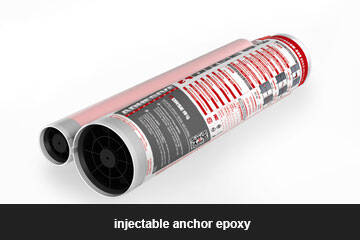

Type: HM-500
Volume: 390ml
Mix Ratio: 3:1
Color: Red or Black
Density: 1.5±0.1g/cm³
Packing: 30 cartridges/carton
Leading manufacturer of injectable epoxy anchoring adhesive

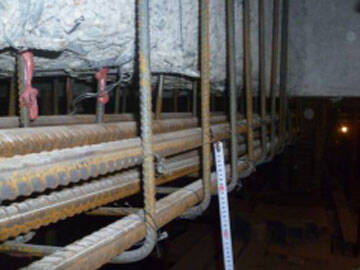

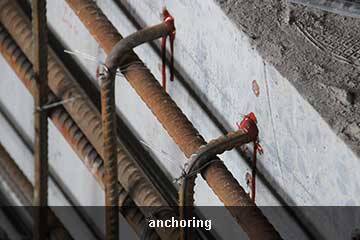

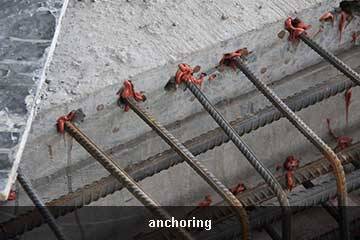

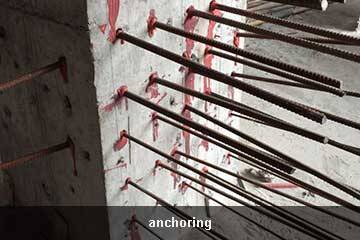

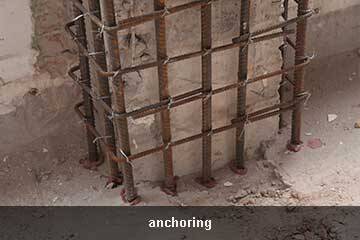

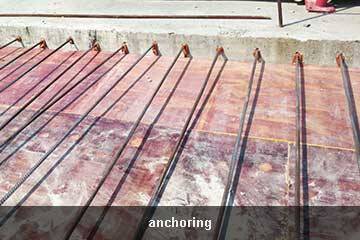

HM-500 epoxy resin anchoring is two-components modified epoxy resin adhesive, with high quality plastic tube, double cartridge package. It's injected into holes with dispenser gun, by mixing part A and part B evenly, to plant rebars.
The colloid is full of elastic reactive spherical body, which improves the strength, toughness, tearing resistance and impact resistance.
The colloid is full of elastic reactive spherical body, which improves the strength, toughness, tearing resistance and impact resistance.
Successful grafting of hydrophilic groups and hydrophobic groups on molecular structure to maintain superior performance in dry or moist environment.
Successful grafting of hydrophilic groups and hydrophobic groups on molecular structure to maintain superior performance in dry or moist environment.
Advanced high-speed dual-planetary power mixing equipment, materials dispersed mixed evenly every parts, and has vacuum treatment to avoid bubbles.
Advanced high-speed dual-planetary power mixing equipment, materials dispersed mixed evenly every parts, and has vacuum treatment to avoid bubbles.
Advanced nano material technology multi-dimensional mesh structure, good thixotropy. NO sagging for both side surface or top surface construction
Advanced nano material technology multi-dimensional mesh structure, good thixotropy. NO sagging for both side surface or top surface construction
Easy extrusion mixing, faster injection speed, higher construction effiency
Easy extrusion mixing, faster injection speed, higher construction effiency
The modification of epoxy resin not only keeps the synthetic superiority of collied,
The modification of epoxy resin not only keeps the synthetic superiority of collied,
Quickly and accurately calculate the usage of HM-500 (chemical anchoring epoxy) to save your time.
Quickly and accurately calculate the usage of HM-500 (chemical anchoring epoxy) to save your time.
Pull-out testing 100% pass no matter in lab or job site.
Pull-out testing 100% pass no matter in lab or job site. Elastic Reactive Spherical Body
Good flexibility, not easy to be broken.
Elastic Reactive Spherical Body
Good flexibility, not easy to be broken. Various Application Environment
Can be used for wet environment and still keep the products good performance.
Various Application Environment
Can be used for wet environment and still keep the products good performance.
Vacuum Packing
The adhesive has more stable performance, longer storage time, with more dense colloid curing, more superior mechanical properties.
Vacuum Packing
The adhesive has more stable performance, longer storage time, with more dense colloid curing, more superior mechanical properties. Nano Technology
Nano Technology
High construction efficiency
High construction efficiency
Unique Formular
but also shortens the curing time at low temperature.
High thixotropy, high strength, easy extrusion mixing, faster injection speed, higher construction efficiency.
Unique Formular
but also shortens the curing time at low temperature.
High thixotropy, high strength, easy extrusion mixing, faster injection speed, higher construction efficiency.
Patent Anchoring Calculator
Anchoring Adhesive Calculator
Patent Anchoring Calculator
Anchoring Adhesive Calculator Stable Performance
Stable Performance
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-120L Crack Injection Resin
Horse Dispenser Gun
Horse Electric Dispenser Gun

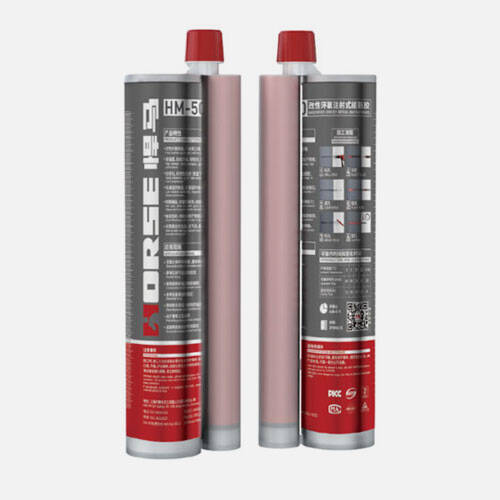

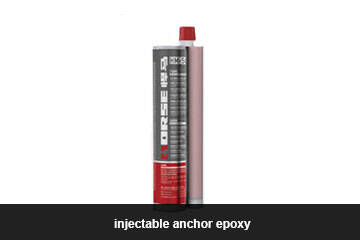

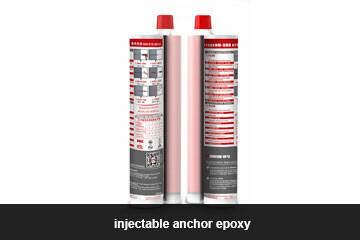

HM-500 Injection Anchoring Adhesive
Horse HM-500 Injactable Anchoring Adhesive
HM-500 Epoxy Injectable Adhesive.pdf
| HM-500 concrete injectable anchoring adhesive performance parameters | |
| Appearance | A(main agent): white paste |
| B(curing agent): red or black paste | |
| Viscosity of mixture | 18～22 Pa·s |
| Density of curing material | 1.50±0.10g/cm3 |
| Mixture ratio (volume ratio) | 3:1 |
| Storage period | 12 months |
| Packageing | 390ml |
| Operable time and curing time | |||||
| Ambient temperature(℃) | -5 | 0 | 10 | 20 | ≥30 |
| Operable time(℃) | 60 | 45 | 30 | 25 | 20 |
| Curing time(h) | 72 | 48 | 24 | 12 | 6 |
| HM-500 concrete injectable anchoring adhesive performance indexes | ||||
| item | index | item | index | |
| Colloidal performance | Splitting tensile strength(MPa) | ≥8.5 | Thixotropic index | ≥4.0 |
| Bending strength(MPa) | ≥50 | Sagging mobility | ≤2.0mm | |
| Compressive strength(MPa) | ≥60 | Distortion temperature | ≥65℃ | |
| Adhesion performance | Steel-steel (steel sleeve) tensile anti-shear strength（MPa） | ≥10 | ||
| Under the constraint drawing condition, ribbed steel bars and C30, φ25, L=150mm（MPa） | ≥11 | |||
| Adhesion strength of concrete C60, φ25, L=125mm（MPa） | ≥17 | |||
| Steel-steel T impact stripping length | ≤25mm | |||
| Non-volatile matter content（solid content）（%） | ≥99 | |||
| Long-term performance | Wet and heat ageing resistance ability | Compared with the short-term results at room temperature, the decrease rate of shear strength: ≤12% | ||
| Heat aging resistance | Compared with the short-term results at same temperature 10min, the decrease rate of shear strength: ≤5% | |||
Freezing and thawing resistance ability | Compared with room temperature, short-term results, the shear strength decrease rate is not greater than 5% | |||
Fatigue stress resistance ability | After2×106 times continuous sine wave fatigue loads, specimen does not destroy | |||
Resistance to stress for a long time | Steel - steel tensile shear specimens does not destroy, and creep deformation value is less than 0.4 mm | |||
Resistance to corrosion medium | Resistance to salt fog effect | Compared with the control group, the strength decrease rate: ≤5%, and shall not have cracks or come unglued | ||
Alkaline medium resistance ability | Compared with the control group, the strength does not decrease, and as the concrete damage, and shall not have cracks or come unglued | |||
Acid medium resistance ability | Concrete damage, and shall not have cracks or degumming | |||
The reference table of HM-500 anchor adhesive planting and anchoring binding force
*The anchoring adhesion when planting steel bars
The steel bar diameter φ(mm) | The diameter of drilled hole D(mm) | The yield characteristic value of steel bars(kN) | The anchoring adhesion(characteristic value)RK(kN) | The steel bar yield planting depth lb(mm) | ||||||||||
| 10 | 13 | 26.3 | 26.1 | 26.3 | 26.3 | 26.3 | 105 | |||||||
| 12 | 16 | 37.9 | 36.2 | 37.9 | 37.9 | 37.9 | 125 | |||||||
| 14 | 18 | 51.6 | 45.2 | 49.8 | 51.6 | 51.6 | 51.6 | 150 | ||||||
| 16 | 20 | 67.4 | 60.3 | 67.4 | 67.4 | 67.4 | 67.4 | 175 | ||||||
| 18 | 22 | 85.2 | 74.6 | 82.9 | 85.2 | 85.2 | 85.2 | 200 | ||||||
| 20 | 25 | 105.2 | 94.2 | 100.5 | 105.2 | 105.2 | 105.2 | 220 | ||||||
| The steel bar buried depth(mm) | 80 | 90 | 100 | 110 | 120 | 135 | 150 | 160 | 180 | 200 | 220 | |||
The steel bar diameter φ(mm) | The diameter of drilled hole D(mm) | The yield characteristic value of steel bars(kN) | The anchoring adhesion(characteristic value)RK(kN) | The steel bar yield planting depth lb(mm) | ||||||||||
| 22 | 28 | 127.3 | 112.5 | 126.6 | 127.3 | 127.3 | 127.3 | 240 | ||||||
| 25 | 32 | 164.4 | 144.8 | 160.8 | 164.4 | 164.4 | 164.4 | 164.4 | 270 | |||||
| 28 | 35 | 206.3 | 175.9 | 193.4 | 206.3 | 206.3 | 206.3 | 206.3 | 305 | |||||
| 32 | 40 | 269.4 | 241.3 | 251.3 | 269.4 | 269.4 | 269.4 | 350 | ||||||
| 40 | 50 | 421.0 | 339.3 | 383.3 | 421.0 | 421.0 | 421.0 | 440 | ||||||
| The steel bar buried depth(mm) | 160 | 180 | 200 | 220 | 240 | 250 | 270 | 305 | 350 | 400 | 440 | |||
Notes:1.Contcrete strength is C30,II grade steel yield strength is 335 N/mm2.
2.The diameter of drilling holes in the table is the best recommended value,the nearest bit can be selected according to the situation.
3.The yield buried depth value of the steel bars should consider safety factors,and select the design values.
*The anchoring adhesion when planting steel bars
The steel bar diameter φ(mm) | The diameter of drilled hole D(mm) | The yield characteristic value of steel bars(kN) | The anchoring adhesion(characteristic value)Rd(kN) | The steel bar yield planting depth lb(mm) | ||||||||||
| 10 | 13 | 22.9 | 17.4 | 19.6 | 21.8 | 22.9 | 105 | |||||||
| 12 | 16 | 33.0 | 24.1 | 26.8 | 29.5 | 33.0 | 125 | |||||||
| 14 | 18 | 44.8 | 30.1 | 33.2 | 36.2 | 40.7 | 44.8 | 150 | ||||||
| 16 | 20 | 58.5 | 40.2 | 45.1 | 50.1 | 53.5 | 58.5 | 175 | ||||||
| 18 | 22 | 74.1 | 49.7 | 55.3 | 59.0 | 66.4 | 74.1 | 200 | ||||||
| 20 | 25 | 91.5 | 62.8 | 67.0 | 75.3 | 83.7 | 91.5 | 220 | ||||||
| The steel bar buried depth(mm) | 80 | 90 | 100 | 110 | 120 | 135 | 150 | 160 | 180 | 200 | 220 | |||
The steel bar diameter φ(mm) | The diameter of drilled hole D(mm) | The yield characteristic value of steel bars(kN) | The anchoring adhesion(characteristic value)Rd(kN) | The steel bar yield planting depth lb(mm) | ||||||||||
| 22 | 28 | 110.7 | 75.0 | 84.4 | 93.8 | 103.2 | 110.7 | 240 | ||||||
| 25 | 32 | 143.0 | 96.5 | 107.2 | 118.0 | 128.7 | 134.0 | 143.0 | 270 | |||||
| 28 | 35 | 179.3 | 117.2 | 128.9 | 140.6 | 146.5 | 158.3 | 179.3 | 305 | |||||
| 32 | 40 | 234.2 | 160.8 | 167.3 | 181.0 | 204.4 | 234.2 | 350 | ||||||
| 40 | 50 | 365.9 | 226.2 | 255.5 | 293.1 | 334.9 | 365.9 | 440 | ||||||
| The steel bar buried depth(mm) | 160 | 180 | 200 | 220 | 240 | 250 | 270 | 305 | 350 | 400 | 440 | |||
Notes:Concrete strength is C30,the designed strength of grade II steel bar is 310 N/mm2.
The designed safety coefficient of steel bar ys=1.15,the designed safety coefficient of concrete yc=1.5.
| The anchoring adhesion when planting steel bars | ||||||
The screw diameter | The diameter of drilled hole(mm) | The buried depth(mm) | Characteristic value | Designed value | ||
| Tensile resistance(kN) | Shearing resistance(kN) | Tensile resistance(kN) | Shearing resistance(kN) | |||
| M8 | 10 | 80 | 15.8 | 8.5 | 7.5 | 5 |
| M10 | 12 | 90 | 22.9 | 13.7 | 12.5 | 8 |
| M12 | 14 | 110 | 46.9 | 20.0 | 19 | 11.8 |
| M16 | 18 | 125 | 65.6 | 37.8 | 29 | 22.2 |
| M20 | 25 | 170 | 85.3 | 59.0 | 42.5 | 34.7 |
| M24 | 28 | 210 | 170 | 85.0 | 59.7 | 50 |
| M30 | 35 | 280 | 206.0 | 135.9 | 89 | 79.4 |
The table of using gule quantities of HM-500 epoxy anchor adhesive
the steel bar diameter | pore size | pore depth | the injecting glue volume | theoretic number | note |
| mm | mm | mm | ml(2/3v) | piece | |
| 8 | 12 | 80 | 6.03 | 64.67 | 10d |
| 8 | 12 | 120 | 9.04 | 43.14 | 15d |
| 8 | 12 | 160 | 12.06 | 32.33 | 20d |
| 10 | 14 | 100 | 10.26 | 38.01 | 10d |
| 10 | 14 | 150 | 15.08 | 25.86 | 15d |
| 10 | 14 | 200 | 20.52 | 19.01 | 20d |
| 12 | 16 | 120 | 16.09 | 24.23 | 10d |
| 12 | 16 | 180 | 24.12 | 16.16 | 15d |
| 12 | 16 | 240 | 32.18 | 12.11 | 20d |
| 14 | 18 | 140 | 23.73 | 16.43 | 10d |
| 14 | 18 | 210 | 35.61 | 10.95 | 15d |
| 14 | 18 | 280 | 47.46 | 8321 | 20d |
| 16 | 22 | 160 | 40.52 | 9.62 | 10d |
| 16 | 22 | 240 | 60.79 | 6.41 | 15d |
| 16 | 22 | 320 | 81.04 | 4.81 | 20d |
| 18 | 25 | 180 | 58.87 | 6.62 | 10d |
| 18 | 25 | 270 | 88.31 | 4.41 | 15d |
| 18 | 25 | 360 | 117.74 | 3.31 | 20d |
| 20 | 28 | 200 | 82.06 | 4.75 | 10d |
| 20 | 28 | 300 | 123.09 | 3.16 | 15d |
| 20 | 28 | 400 | 164.12 | 2.37 | 20d |
| 22 | 30 | 220 | 103.62 | 3.76 | 10d |
| 22 | 30 | 330 | 155.43 | 2.5 | 15d |
| 22 | 30 | 440 | 207.24 | 1.88 | 20d |
| 25 | 32 | 250 | 133.97 | 2.91 | 10d |
| 25 | 32 | 375 | 200.96 | 1.94 | 15d |
| 25 | 32 | 500 | 267.95 | 1.45 | 20d |
Video of Horse HM-500 Injectable Anchoring Adhesive(click it)
1.Drill hole to the diameter and depth required. The diameter must be in accordance with anchor size.
2.The drill hole must be cleaned with air blower, starting from the bottom of the hole.The drill hole mustbe thoroughly cleaned with steel brush. After brush, to use air blower to clean the drill hole again.

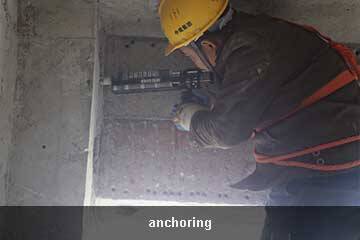

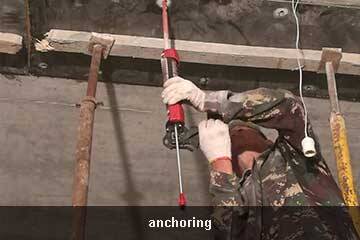

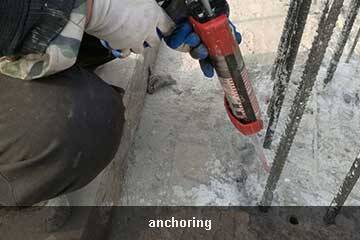

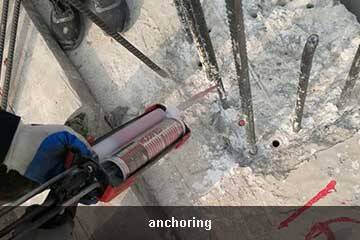

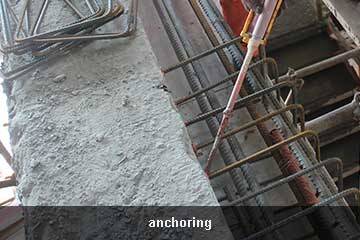

3.Inject HM-500 epoxy anchoring into the hole, starting from the bottom, while slowly drawing back the static mixer. In any case avoid entrapping air. For deep holes extension tubing can be used.

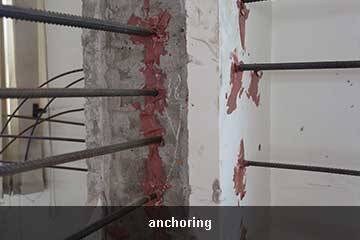

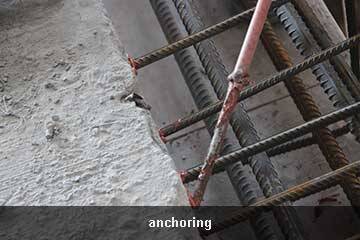

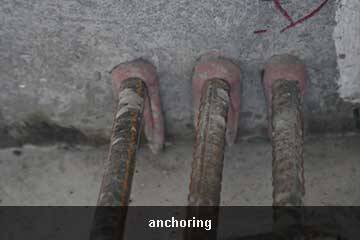

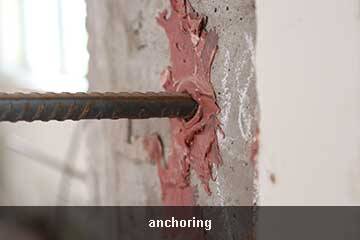

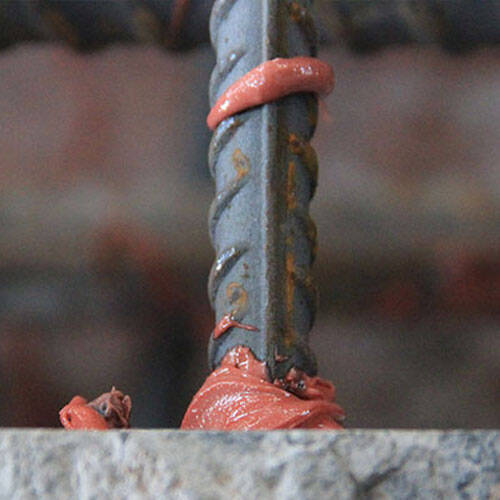

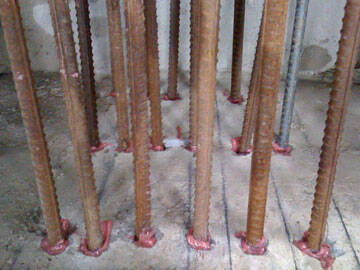

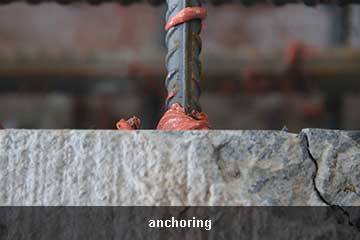

4.Insert the anchor with a rotary motion into the filled drill hole. Some adhesive must come out of the hole.
5.During the resin hardening time the anchor must not be moved or loaded.
Language: English
