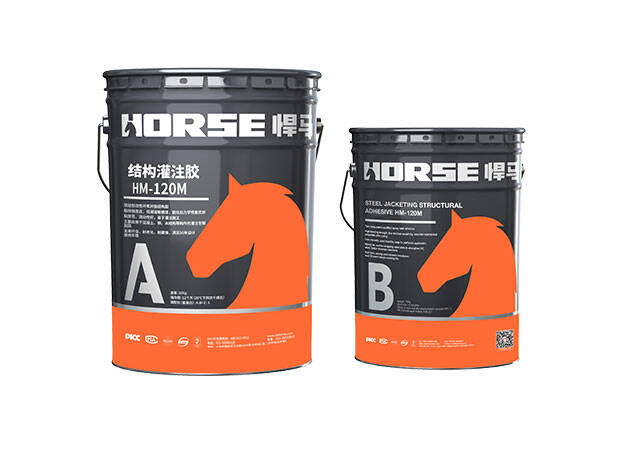

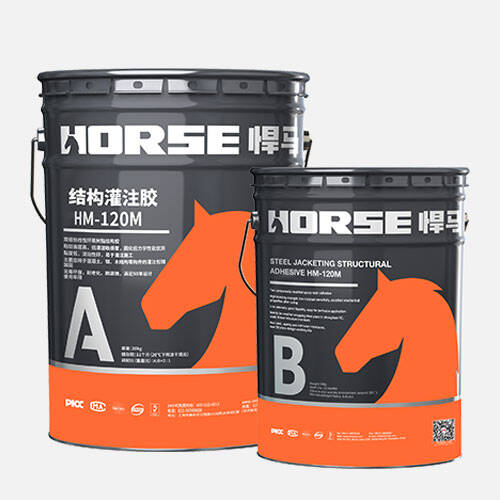

Part A (Epoxy): 20kg
Part B(Hardener):10kg
Mix Ratio: Part A: Part B=2:1
Barrel A Size: 30*30*37cm
Barrel B Size: 25*25*29cm

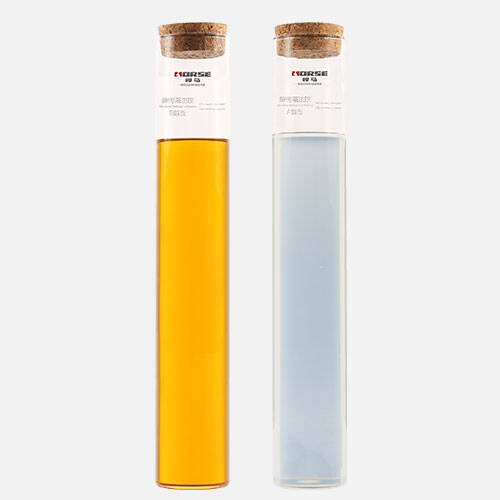

HM-120M Steel jacketing adhesive is new-type modified epoxy resin building structural perfusion adhesive, specifically for supporting adhesive bonded bar reinforcement. It can be bonded with various substrates and metal, with advantages such as high bonding strength, excellent toughness and shear strength, acid- alkali resistance, aging resistance.
• Technical data sheet:
• Technical data sheet:
• Modified epoxy resin, without any solvent, safe and non-toxic;
• Modified epoxy resin, without any solvent, safe and non-toxic;

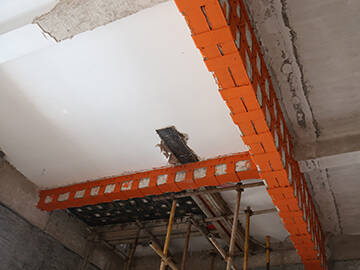

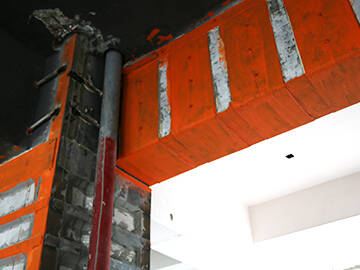

Epoxy bonded steel plate for structural strengthening;Steel jacketing
Epoxy bonded steel plate for structural strengthening;Steel jacketing
• Drilling hole
• Drilling hole
• Store in dry and clear store house of ambient temperature 5-25℃,should not pile up in the open air or rain,not damage the package.A,B component should be kept separate to avoid mixing.From the date of production, effective storage period is 12 months.
• Store in dry and clear store house of ambient temperature 5-25℃,should not pile up in the open air or rain,not damage the package.A,B component should be kept separate to avoid mixing.From the date of production, effective storage period is 12 months.
• The workers should take necessary product measures, such as wearing mask, gloves, goggles,etc. Notice fire prevention and maintain good ventilation on scene.
• The workers should take necessary product measures, such as wearing mask, gloves, goggles,etc. Notice fire prevention and maintain good ventilation on scene.
Documents Download
HM- 120M steel jacketing adhesive ↓
• Application video:
HM-120M
• Brochure:
Steel bonding system ↓
Documents Download
HM- 120M steel jacketing adhesive ↓
• Application video:
HM-120M
• Brochure:
Steel bonding system ↓
Characteristics of Adhesives
• Fast load to the building structure, strong bonding force, large compression and tensile resistance;
• Construction in wide temperature range, no precipitation, simple construction, good process performance;
• Good acid-alkali resistance and aging resistance properties, low moisture sensitivity, small contraction;
• Suitable for almost all building substrates.
Characteristics of Adhesives
• Fast load to the building structure, strong bonding force, large compression and tensile resistance;
• Construction in wide temperature range, no precipitation, simple construction, good process performance;
• Good acid-alkali resistance and aging resistance properties, low moisture sensitivity, small contraction;
• Suitable for almost all building substrates.
Application Range
• Steel-bonded reinforcement of reinforced concrete, old and new buildings' bending drawknot components;
• Wet steel-encased reinforcement;
• Concrete crack pouring or casting steel-bonded reinforcement;
• Adhesion of other building components.

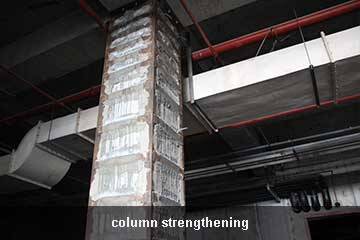

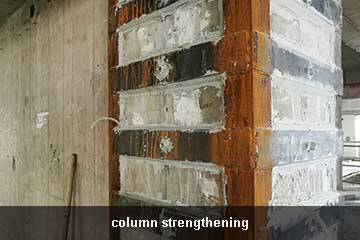

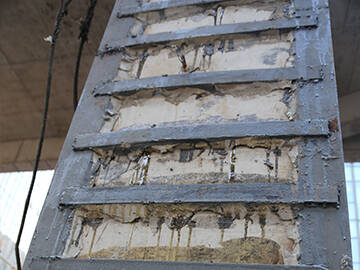

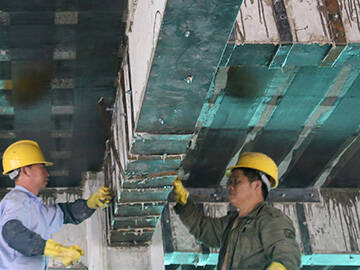

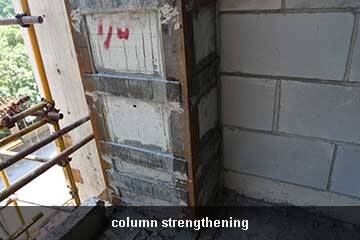

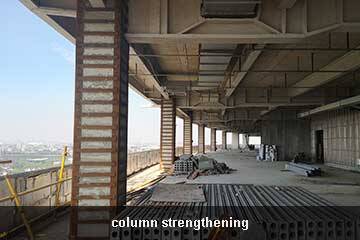

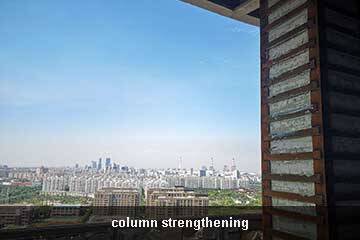

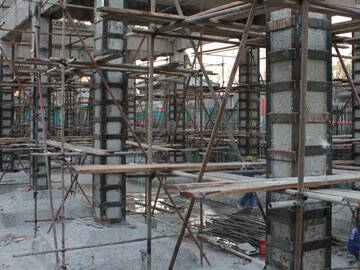

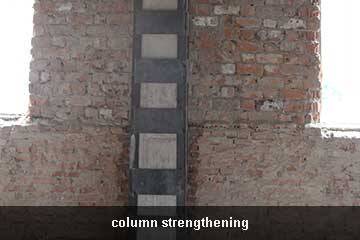

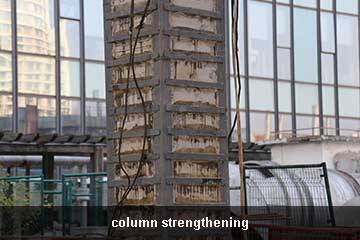

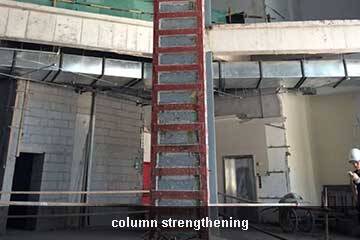

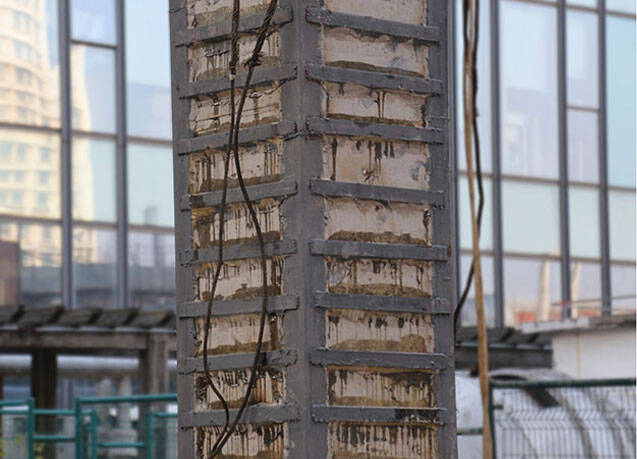

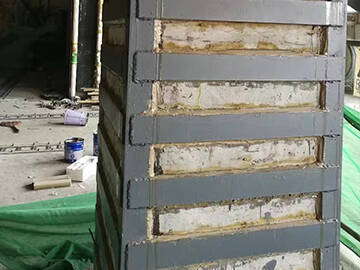

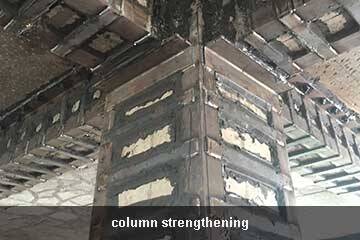

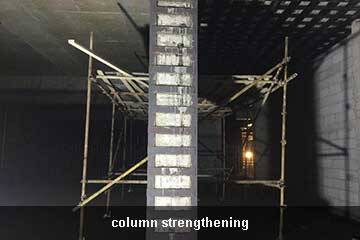

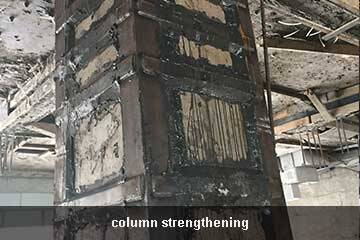

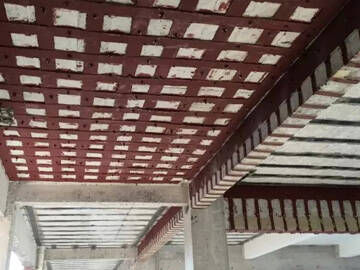

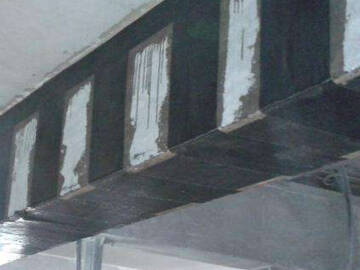

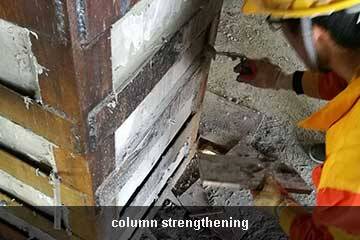

• Steel jacketing:beam jacketing,column jacketing
Application Range
• Steel-bonded reinforcement of reinforced concrete, old and new buildings' bending drawknot components;
• Wet steel-encased reinforcement;
• Concrete crack pouring or casting steel-bonded reinforcement;
• Adhesion of other building components.
• Steel jacketing:beam jacketing,column jacketing
How to Use
• Preparing the surface
• Installing the steel frame
• Sealing and setting gas vent
• Mixing and injecting the adhesive
• Curing and maintenance
• Examination
• Applying anti-corrosion measures
How to Use
• Preparing the surface
• Installing the steel frame
• Sealing and setting gas vent
• Mixing and injecting the adhesive
• Curing and maintenance
• Examination
• Applying anti-corrosion measures
Transportation and Storage
• The structural strengthening adhesive belong to non-dangerous goods,transport as a general chemical building materials,should not damage the package,exposure ,or rain,not tilt or invert in transportation.
Transportation and Storage
• The structural strengthening adhesive belong to non-dangerous goods,transport as a general chemical building materials,should not damage the package,exposure ,or rain,not tilt or invert in transportation.
Attention Points
• If it accidentally touched the skin or clothes, acetone can be used to wipe at once, and then a great deal of clear water is used to flush.
• If accidentally swallowed or splashed into the eyes, please seek medical service at once.
Attention Points
• If it accidentally touched the skin or clothes, acetone can be used to wipe at once, and then a great deal of clear water is used to flush.
• If accidentally swallowed or splashed into the eyes, please seek medical service at once.
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-500 Injection Anchoring Adhesive
HM-120M Structural Perfusion Adhesive
HM120M Steel Jacketing Epoxy.pdf
Brochure
Horse Steel Bonding System.pdf
| HM-120M Structural Perfusion Adhesive Technical Parameters | |
| Basic characteristics | |
| Component | Component A,B |
| Weight ratio | A:B=2:1 |
| Package：Part A (kgs) | 20 |
| Package：Part B (kgs) | 10 |
| Viscosity(MPa·s) | Component A: 600 Component B: 2100 |
| Density(g/cm3) | 1.2±0.1 |
| Operable time (25℃,h) | 2 |
| Finger touch dry time (25℃,h) | 12 |
| Applicable period (25℃,min) | 60 |
| Mechanical Properties | |
| Colloidal compressive strength(MPa) | ≥65.0 |
| Colloidal tensile strength(MPa) | ≥30.0 |
| Steel-steel anti-shear strength(MPa) | ≥15.0 |
| Steel-steel tensile strength(MPa) | ≥33.0 |
| Steel-concrete tensile strength(MPa) | C50 concrete damage |
| Steel-concrete anti-shear strength(MPa) | C50 concrete damage |
| HM-120M Structural Perfusion Adhesive Performance indexes | ||
| item | index | |
| Colloidal performance | Tensile strength (MPa) | ≥30 |
| Tensile elastic modulus (MPa) | ≥2.5×103 | |
| Elongation (%) | ≥1.2 | |
| Bending strength (MPa) | ≥45 | |
| Compressive strength (MPa) | ≥65 | |
| Non-volatile matter content | ≥99% | |
| Distortion temperature | ≥65℃ | |
| Adhesion performance | Steel - steel tensile anti-shear strength(MPa) | ≥15 |
| Steel - steel uneven tear strength(kN/m) | ≥16 | |
| Steel - steel tensile adhesion strength(MPa) | ≥33 | |
| Pulling adhesion strength along with concrete(MPa) | ≥2.5 | |
| Steel - steel T impact stripping length | ≤25mm | |
| Non-volatile matter content (solid content) (%) | ≥99 | |
3D Video of HM-120M Structural Perfusion Adhesive(click it)
1.drilling hole
2.preparing the surface
3.installing the steel frame
4.sealing and setting gas vent
5.mixing and injecting the adhesive
6.curing and maintenance
7.examination
8.applying anti-corrosion measures
