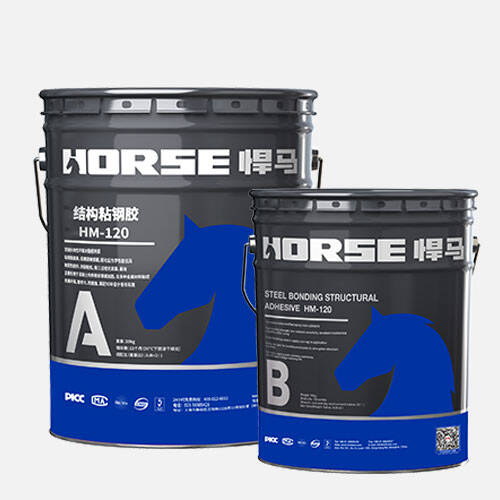

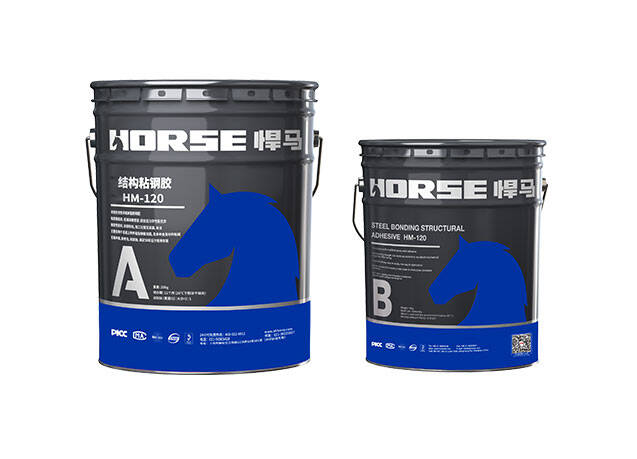

Part A (Epoxy): 20kg
Part B (Hardener): 10kg
Mix Ratio: Part A: Part B=2:1
Barrel A Size: 30*30*37cm
Barrel B Size: 25*25*29cm

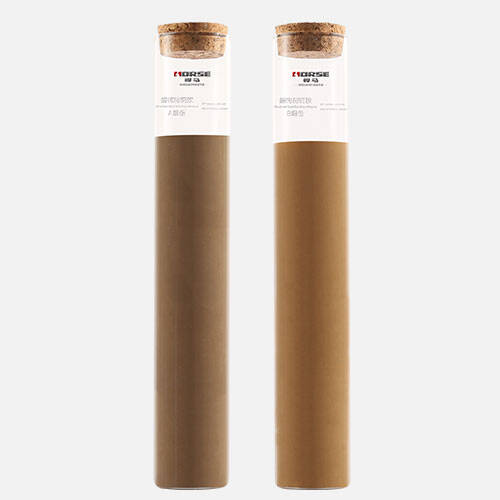

HM-120 structural steel plate bonding adhesive is two-component epoxy product, with strong adhesion,room temperature curing. It has excellent anti-aging, shock resistance properties in self-adhesion and mutual adhesion of steel and concrete, with high shear rate, used for seismic reinforcement of many buildings.
• Technical data sheet:
• Technical data sheet:
• Two-component bisphenol-A type, modified epoxy resin, non-hydrophilic product, with superior adhesion, excellent synthetic mechanical properties, waterproof, corrosion, pollution-free;
• Two-component bisphenol-A type, modified epoxy resin, non-hydrophilic product, with superior adhesion, excellent synthetic mechanical properties, waterproof, corrosion, pollution-free;

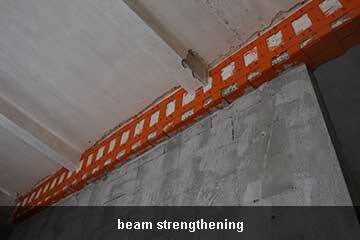

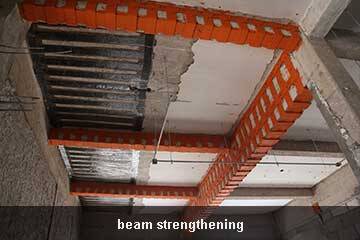

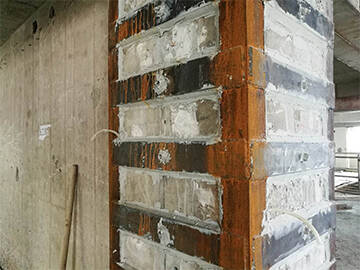

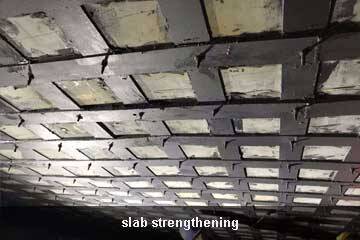

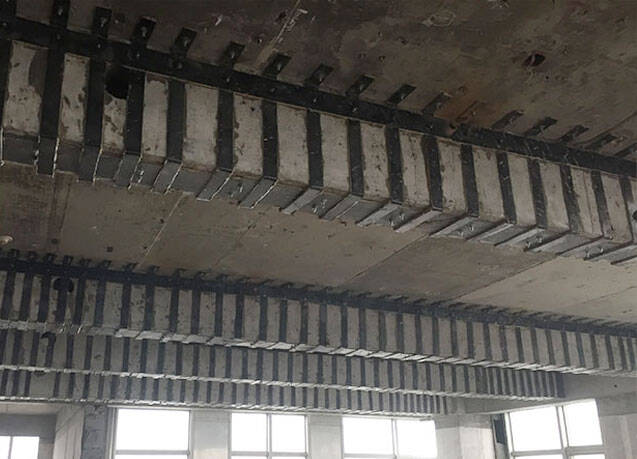

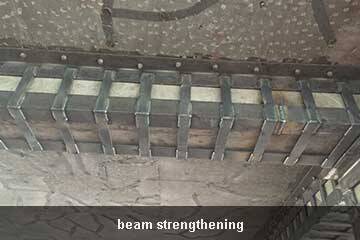

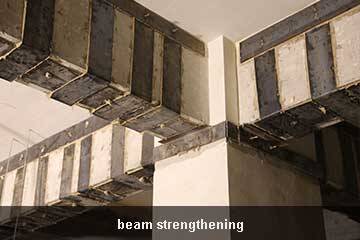

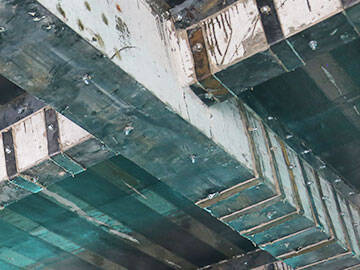

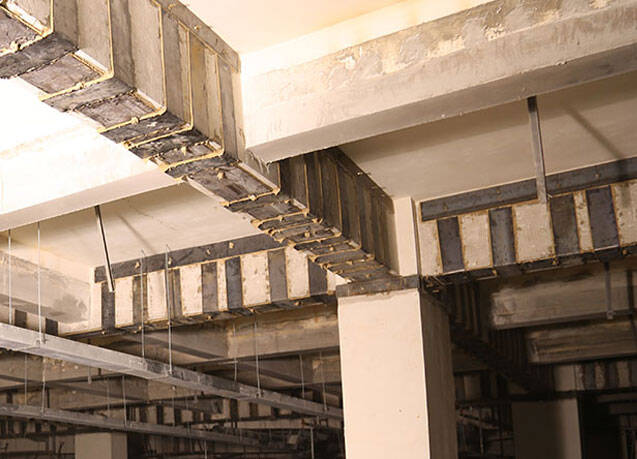

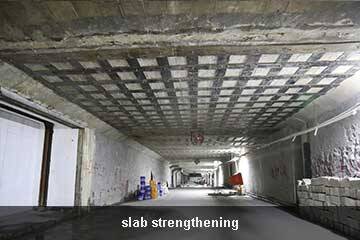

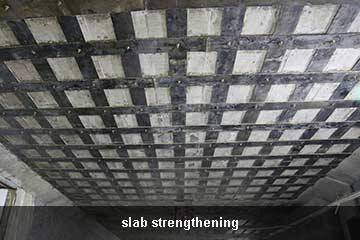

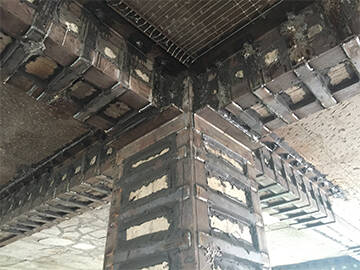

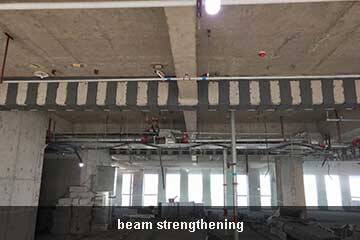

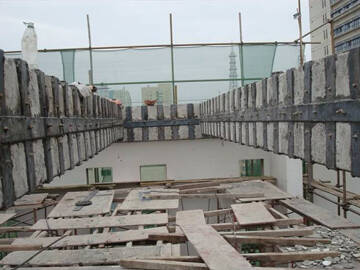

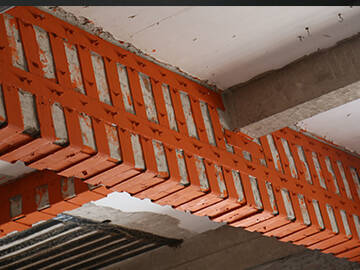

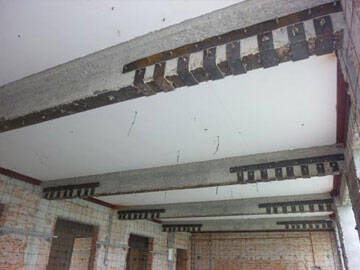

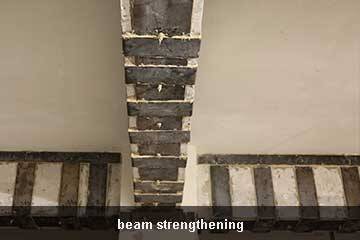

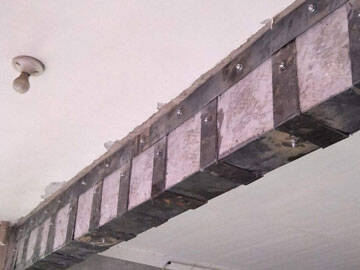

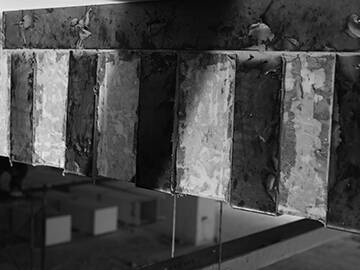

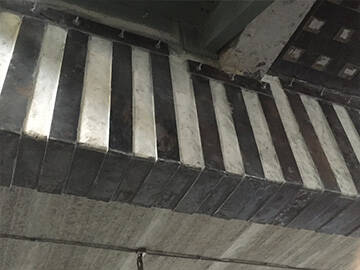

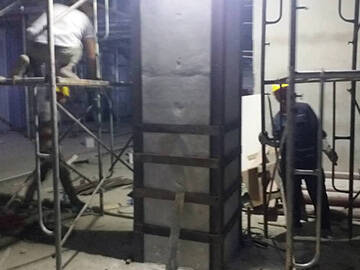

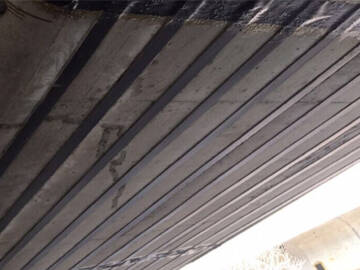

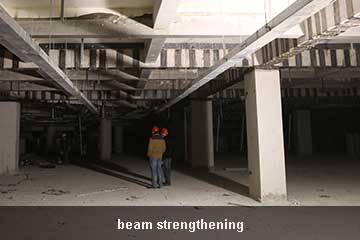

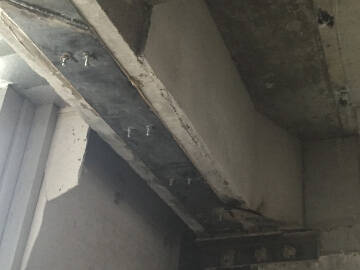

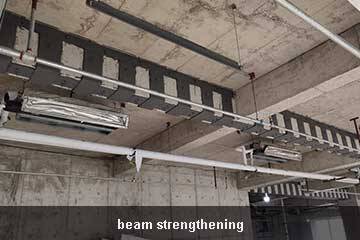

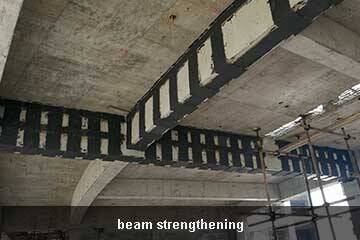

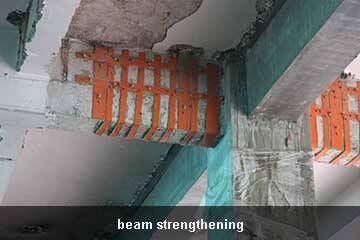

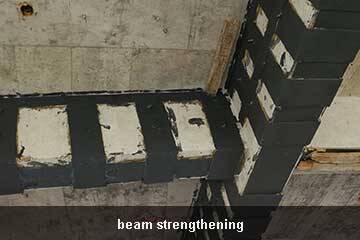

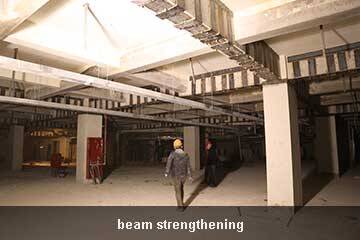

• All kinds of building structure reinforcement, wall, floor, beam, columns and other steel-bonded reinforcement;
• All kinds of building structure reinforcement, wall, floor, beam, columns and other steel-bonded reinforcement;
• Substrate surface clean
• Substrate surface clean
• Store in dry and clear store house of ambient temperature 5-25℃, should not pile up in the open air or rain, not damage the package.A,B component should be kept separate to avoid mixing. From the date of production, effective storage perirod is 12 months.
• Store in dry and clear store house of ambient temperature 5-25℃, should not pile up in the open air or rain, not damage the package.A,B component should be kept separate to avoid mixing. From the date of production, effective storage perirod is 12 months.
• The workers should take necessary product measures, such as wearing mask, gloves, goggles, etc. Notice fire prevention and maintain good ventilation on scene.
• The workers should take necessary product measures, such as wearing mask, gloves, goggles, etc. Notice fire prevention and maintain good ventilation on scene.
Documents Download
HM- 120 steel bonding adhesive ↓
• Application video:
HM-120
• Brochure:
Steel bonding system ↓
Documents Download
HM- 120 steel bonding adhesive ↓
• Application video:
HM-120
• Brochure:
Steel bonding system ↓
Characteristic of Steel Bonding
• Construction in wide temperature range, no precipitation simple construction, good process performance;
• Good acid-alkali resistance and aging resistance properties, low moisture sensitivity;
• Suitable for most building substrates.
Characteristic of Steel Bonding
• Construction in wide temperature range, no precipitation simple construction, good process performance;
• Good acid-alkali resistance and aging resistance properties, low moisture sensitivity;
• Suitable for most building substrates.
Application Range

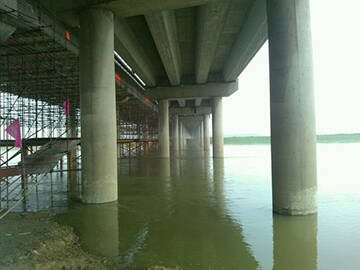

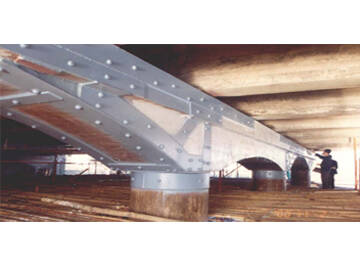

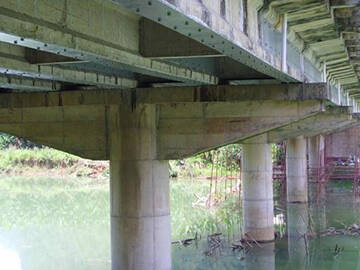

• Various types of anchorage of water conservancy facilities, piers, highways, bridges and other projects;

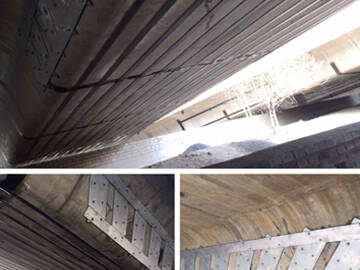

• Steel-steel, steel-concrete bonding.
Application Range
• Various types of anchorage of water conservancy facilities, piers, highways, bridges and other projects;
• Steel-steel, steel-concrete bonding.
How to Use
• Scribe line to setting out
• Anchoring
• Plate surface preparing
• Bonding steel plate with the structural adhesive
• Maintenance
• Checking
• Protection coating
How to Use
• Scribe line to setting out
• Anchoring
• Plate surface preparing
• Bonding steel plate with the structural adhesive
• Maintenance
• Checking
• Protection coating
Transportation and Storage
• The steel bonding adhesive belong to non-dangerous goods, transport as a general chemical building materials, should not damage the package, exposure , or rain, not tilt or invert in transportation
Transportation and Storage
• The steel bonding adhesive belong to non-dangerous goods, transport as a general chemical building materials, should not damage the package, exposure , or rain, not tilt or invert in transportation
Attention Points
• If it accidentally touched the skin or clothes, acetone can be used to wipe at once, and then a great deal of clear water is used to flush.
• If accidentally swallowed or splashed into the eyes, please seek medical service at once.
Attention Points
• If it accidentally touched the skin or clothes, acetone can be used to wipe at once, and then a great deal of clear water is used to flush.
• If accidentally swallowed or splashed into the eyes, please seek medical service at once.
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-500 Injection Anchoring Adhesive
HM-120 Steel Bonding Adhesive
HM120 Structural Steel Bonding Epoxy.pdf
Brochure
Horse Steel Bonding System.pdf
| HM-120 Steel Plate Bonding Adhesive Performance Parameters | |
| Appearance | A（main agent）: gray putty |
| B（curing agent）: brown purry | |
| Viscosity of mixture | ≥20Pa·s |
| Density of curing material | 1.80±0.1g/cm3 |
| Mixture ratio（weight ratio） | 2:1 |
| Operable time（25℃） | 30min |
| Finger touch dry time（25℃） | 2h |
| Storage period | twelve months |
| Steel Plate Bonding Adhesive Performance indexes | ||
| item | index | |
| Colloidal performance | Tensile strength (MPa) | ≥30 |
| Tensile elastic modulus (MPa) | ≥3.2×103 | |
| Elongation (%) | ≥1.2 | |
| Bending strength (MPa) | ≥45 | |
| Compressive strength (MPa) | ≥65 | |
| Distortion temperature | ≥65°C | |
| Adhesion performance | Steel-steel tensile anti-shear strength(MPa) | ≥15 |
| Steel - steel uneven tear strength(kN/m) | ≥16 | |
| Steel - steel tensile adhesion strength(MPa) | ≥33 | |
| Pulling adhesion strength along with concrete(MPa) | ≥2.5 | |
| Steel - steel T impact stripping length | ≤25mm | |
| Non-volatile matter content (solid content) (%) | ≥99 | |
| Long-term performance | Wet and heat ageing resistance ability | Compared with the short-term results at room temperature, the decrease rate of shear strength:≤12% |
| Heat aging resistance | Compared with the short-term results at same temperature 10min, the decrease rate of shear strength: ≤5% | |
| Freezing and thawing resistance ability | Compared with room temperature, short-term results, the shear strength decrease rate is not greater than 5% | |
| Fatigue stress resistance ability | After2×106 times continuous sine wave fatigue loads, specimen does not destroy | |
| Resistance to stress for a long time | Steel - steel tensile shear specimens does not destroy, and creep deformation value is less than 0.4 mm | |
| Resistance to corrosion medium | Resistance to salt fog effect | Compared with the control group, the strength decrease rate: ≤5%, and shall not have cracks or come unglued |
| Alkaline medium resistance ability | Compared with the control group, the strength does not decrease, and as theconcrete damage, and shall not have cracks or come unglued | |
| Acid medium resistance ability | Concrete damage, and shall not have cracks or degumming | |
3D Video of HM-120 Structural Steel Adhesive(click it)
1.substrate surface clean
2.scribe line ro setting out
3.anchoring
4.plate surface preparing
5.bonding steel plate with the structural adhesive
6.maintaince
7.checking
8.protection coating
