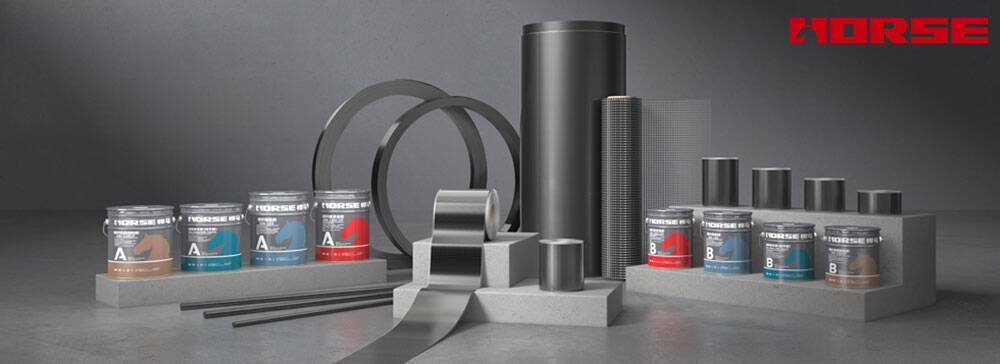

Horse Construction is one of the early domestic manufacturers in China to enter the structural reinforcement materials sector, specializing in two main product lines: carbon fiber products and epoxy resin adhesives.

The company’s positioning is clear: it is a specialized manufacturer of reinforcement materials—not a trader—but an industrial enterprise with its own production lines and technical team, capable of ensuring a continuous supply.

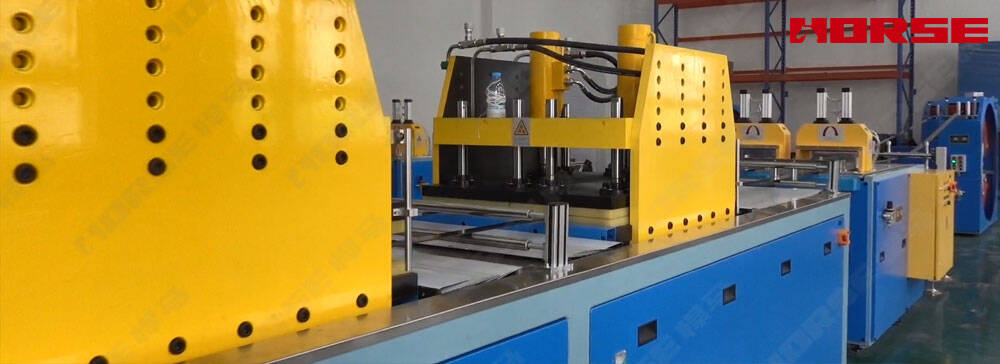

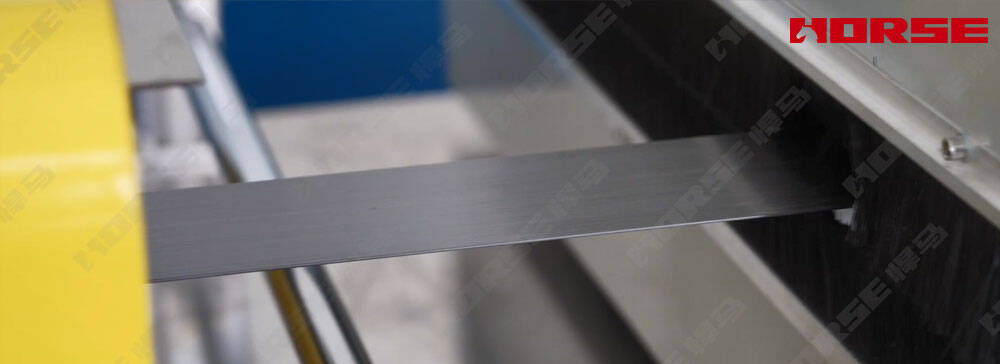

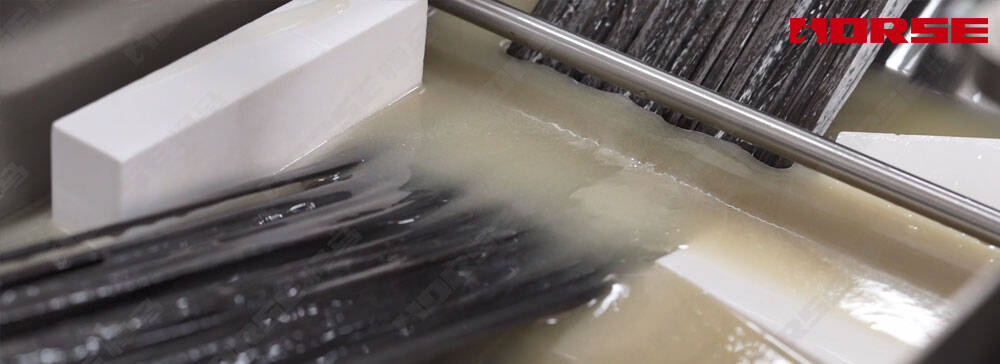

The carbon plates are manufactured using the pultrusion process, in which continuous carbon fiber strands pass through a resin impregnation bath and a heated mold to cure and take shape, followed by continuous pulling and cutting to specified lengths.

This process offers several key advantages:

First, consistent fiber content. The fiber volume fraction in pultrusion is typically 65% or higher, with significantly less batch-to-batch variation compared to hand lay-up or vacuum infusion methods. For applications like structural reinforcement, where material consistency is critical, stability is more important than pushing for extreme performance limits.

Second, high-efficiency continuous production. We can accommodate anything from small initial orders to stable, high-volume supply. Horse’s carbon plate production lines have a daily capacity of several hundred square meters, allowing us to handle large-scale projects and urgent orders simultaneously; we also maintain substantial inventory.

Third, flexible dimensions and specifications. Since molds can be customized, the thickness and width of the carbon plates can be tailored to specific project requirements. We stock standard sizes ranging from 1.2mm to 3.0mm in thickness and 20mm to 200mm in width, and we can also discuss custom mold creation for non-standard specifications.

Horse Carbon Fiber Plates Specification

Package

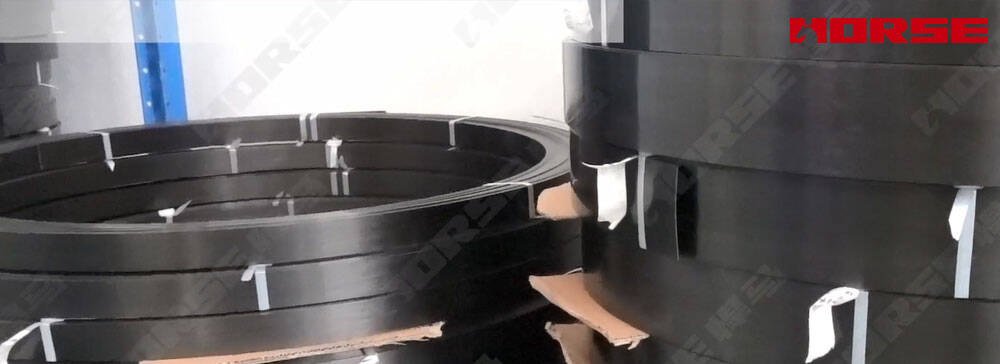

The length of Horse carbon fiber plate is 100m, the width is divided into 50mm, 100mm; the thickness is divided into 1.2mm, 1.4mm, 2.0mm, 3.0mm. Roll into a ring and use a belt to bind. Other specifications can be customized.

We also manufacture the matching adhesive, HM-120CP.

Many online sellers claim to be manufacturers, but few actually own a factory. How can you tell the difference?

First, check for large-scale production lines. Horse operates large-scale production lines for carbon plates and adhesives with stable daily output—far from being a small-scale workshop.

Second, look for testing capabilities. It is not enough to simply have a test report; the manufacturer must possess its own laboratory and the ability to conduct mechanical performance testing. Horse’s products come with third-party test reports based on internationally recognized standards, such as ASTM-D3039.

Third, consider inventory levels. Having standard carbon plate stock means you avoid waiting for production cycles, allowing for rapid responses to urgent projects. Horse maintains stock of standard specifications, enabling shipment as early as the same or next day.

Fourth, examine project case studies. The number of projects completed and the range of countries and regions served provide the most authentic validation. Horse’s structural reinforcement materials have been used in over 70,000 projects worldwide, spanning more than 60 countries and regions.

The reasons for ultimately choosing Horse can be summarized as follows:

• Product stability—consistent quality across batches, ensuring no discrepancies in specifications between shipments during construction.

• Reliable supply—accurate delivery schedules, with the capacity to handle both large-scale projects and urgent orders.

• Technical support—direct access to the right people when issues arise, without the need to navigate through multiple layers of bureaucracy.

• Reasonable pricing—while not the cheapest option, it offers competitive value for money relative to products of comparable quality.

Horse Construction has long specialized in the field of structural reinforcement materials; its carbon fiber plates and matching adhesives are exported to over 100 countries and regions worldwide, with a track record of more than 90,000 projects. Please feel free to contact us for carbon fiber plate procurement or technical consultation.
