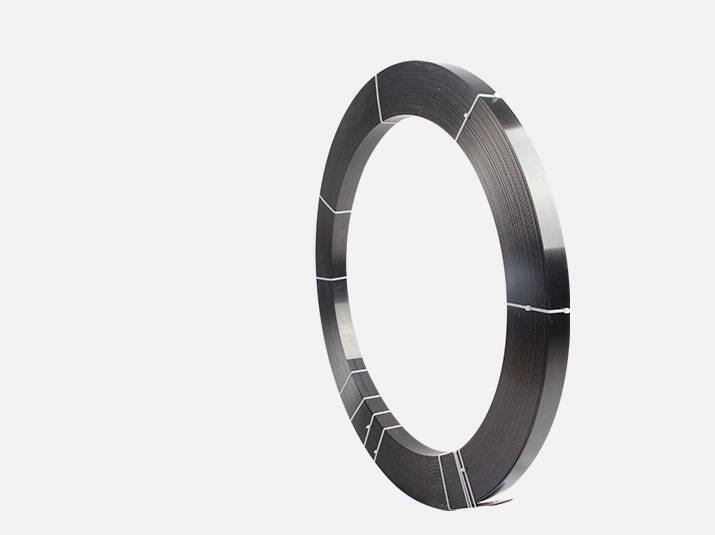

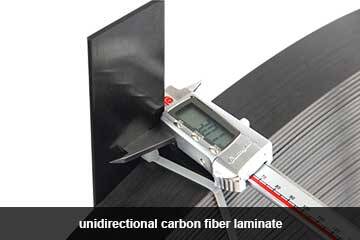

Thickness:1.4mm
Density: 1.6g/cm³
Packing: 100 meters/roll
Width: 50mm, 100mm or to be customized.
Leading manufacturer of unidirectional carbon fiber plate/strip/laminate for concrete repair and structural strengthening

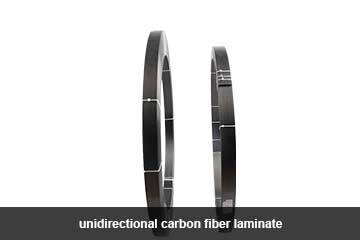

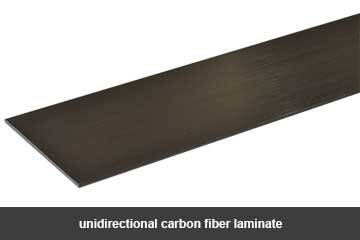

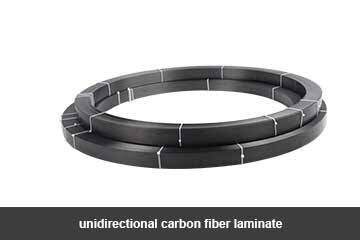

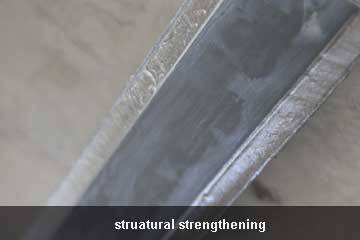

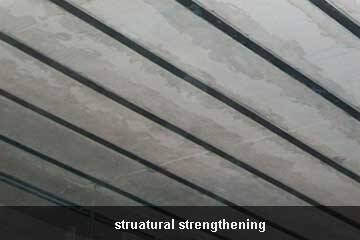

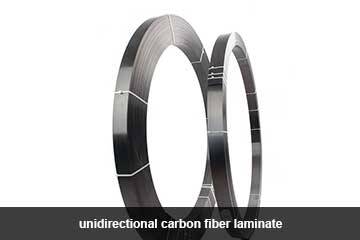

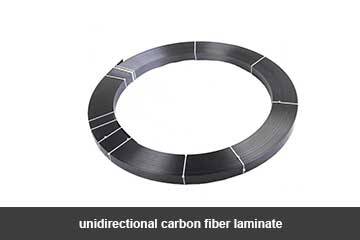

Horse carbon fiber reinforced polymer(CFRP) strip/plate/laminate is pre-cured composite laminates, bonding onto the structure as externally strengthening reinforcement using HM-120CP epoxy resin as the adhesive.

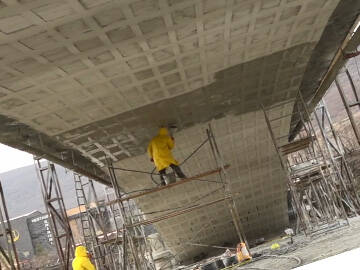

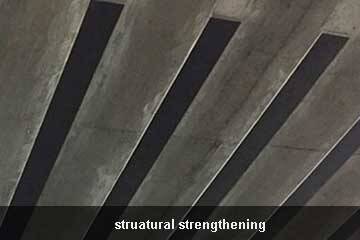

Horse carbon fiber plate strengthening reinforcement systems for strengthening, repair and rehabilitation of masonry, concrete, steel and wooden structures.
• Technical data sheet:
• Technical data sheet:
• Short construction period
• Short construction period

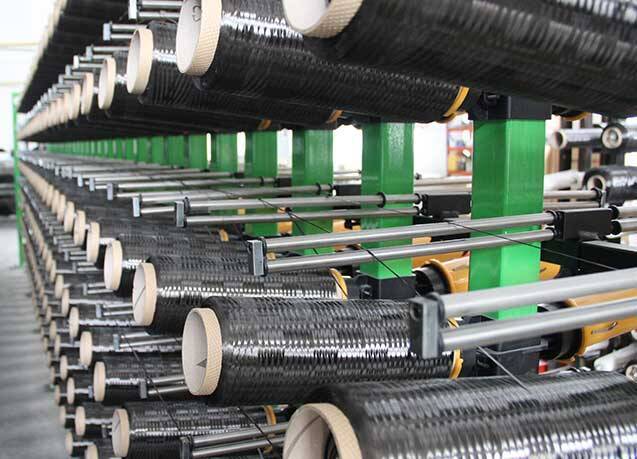

• Raw material, 4900~5500Mpa aviation raw fiber
• Raw material, 4900~5500Mpa aviation raw fiber
• High strength, high modulus
• High strength, high modulus
• Load increases
• Load increases

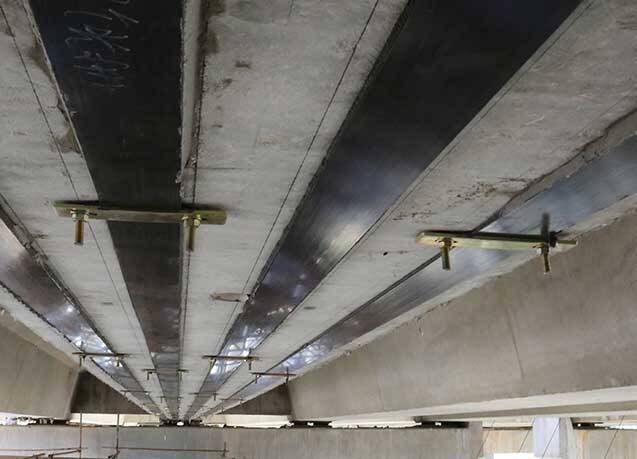

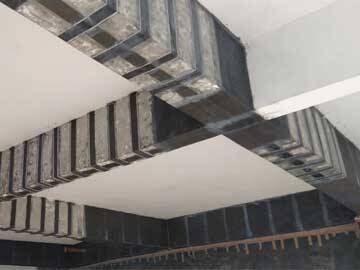

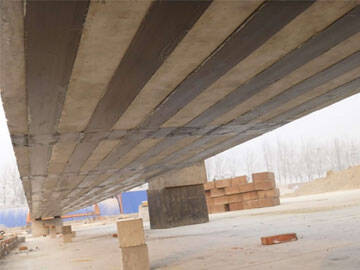

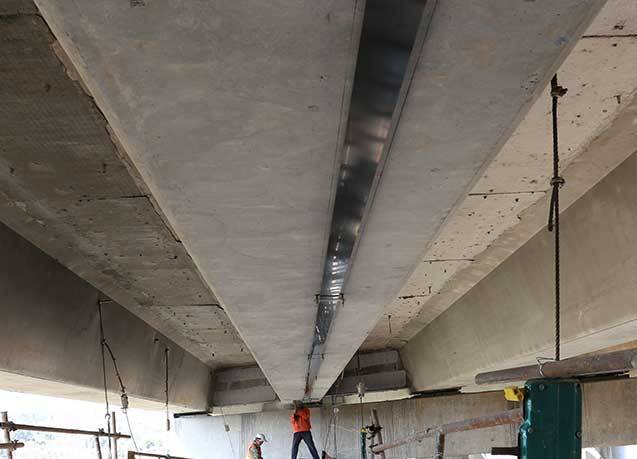

• Beams strengthening
• Beams strengthening

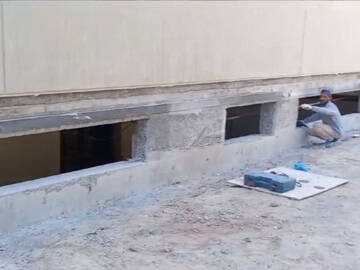

• Concrete substrate
• Concrete substrate
• Civil buildings
• Civil buildings

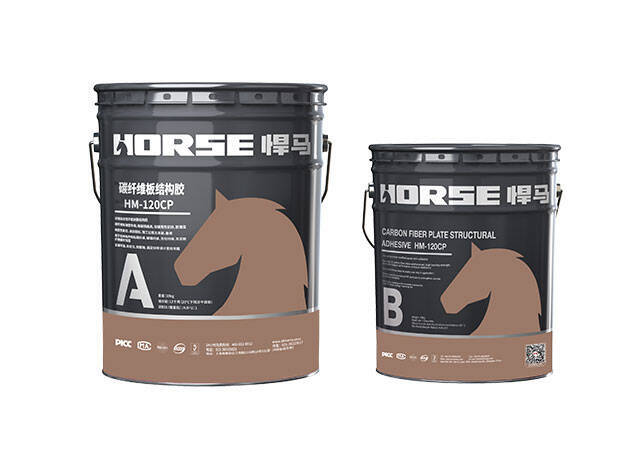

HM-120CP carbon fiber plate adhesive, designed for HORSE carbon fiber plate/strip/laminate.
HM-120CP carbon fiber plate adhesive, designed for HORSE carbon fiber plate/strip/laminate.
• Setting out according to design
• Setting out according to design
Documents
HM- 1.2T carbon fiber plate ↓
HM- 1.4T carbon fiber plate ↓
• Product catalog:
Horse FRP strengthening system ↓
• Design software:
Horse FRP Strengthening Design Software ↓ ↓
• Videos:
Tensile strength test
Factory
Documents
HM- 1.2T carbon fiber plate ↓
HM- 1.4T carbon fiber plate ↓
• Product catalog:
Horse FRP strengthening system ↓
• Design software:
Horse FRP Strengthening Design Software ↓ ↓
• Videos:
Tensile strength test
Factory
Advantages of CFRP Plate Strengthening
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting method
• 1 layers of CFRP plate is equivalent to 4-8 layers of CFRP fabric
Advantages of CFRP Plate Strengthening
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting method
• 1 layers of CFRP plate is equivalent to 4-8 layers of CFRP fabric

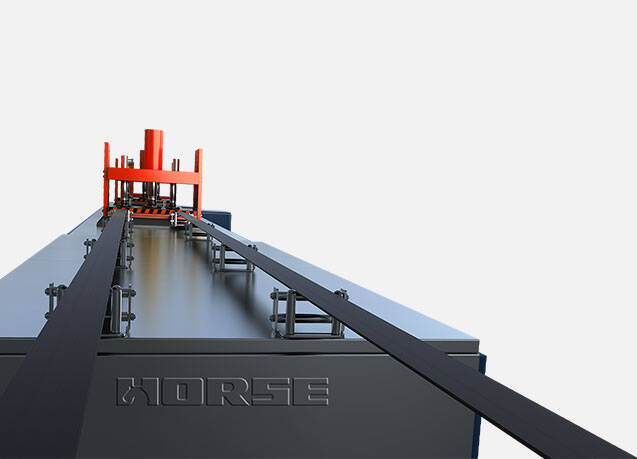

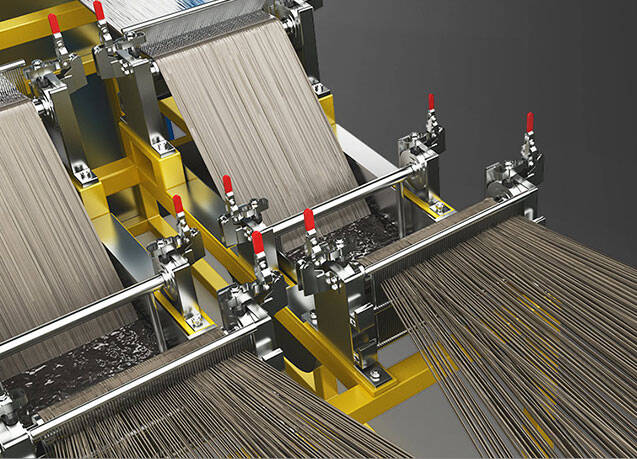

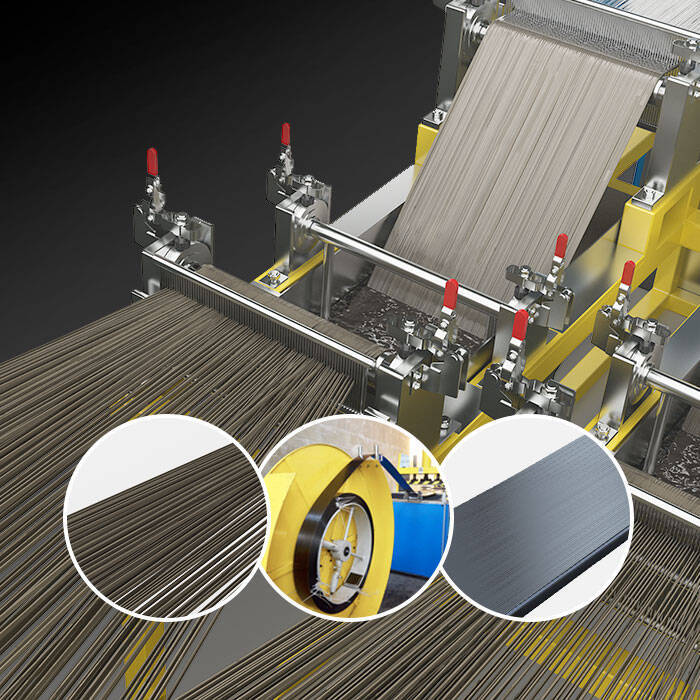

Manufacturer of Unidirectional Carbon Fiber Plate
• Donier, 3 carbon fiber plate production lines, 2,000 meters per day
• Stock, 10,000 meters
• Factory, 5,000 square meters
• Laboratory, laboratory and 3 technologies
• Test and report, third party testing reports, ASTM-D3039
• Projects, 7,000 projects from 76 countries
Manufacturer of Unidirectional Carbon Fiber Plate
• Donier, 3 carbon fiber plate production lines, 2,000 meters per day
• Stock, 10,000 meters
• Factory, 5,000 square meters
• Laboratory, laboratory and 3 technologies
• Test and report, third party testing reports, ASTM-D3039
• Projects, 7,000 projects from 76 countries
Key Characteristics of Carbon Fiber Plate
• Light weight
• Easy to install
• Easy to check after construction
• Environmental friendly
• Outstanding fatigue resistance, alkali resistance, acid resistance
Key Characteristics of Carbon Fiber Plate
• Light weight
• Easy to install
• Easy to check after construction
• Environmental friendly
• Outstanding fatigue resistance, alkali resistance, acid resistance
Application Range of Carbon Fiber Plate Strengthening
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction
Application Range of Carbon Fiber Plate Strengthening
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction

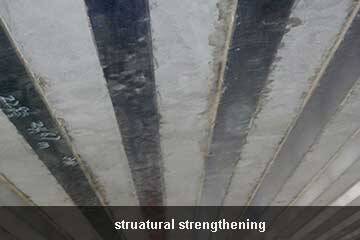

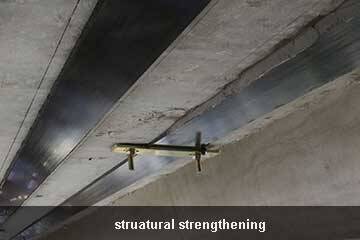

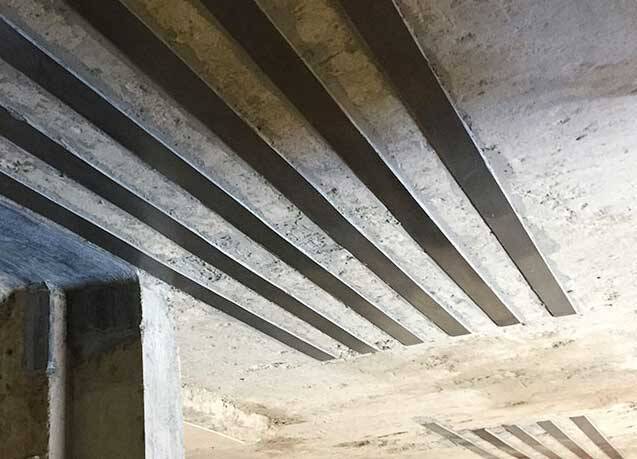

Structural Elements of Carbon Fiber Plate Strengthening
• Slabs strengthening

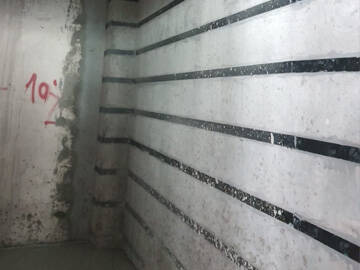

• Walls strengthening
• Pipes strengthening
• Pier caps strengthening
Structural Elements of Carbon Fiber Plate Strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening
Base Substrates of Carbon Fiber Plate Strengthening
• Steel substrate
• Masonry substrate
• Timber substrate
Base Substrates of Carbon Fiber Plate Strengthening
• Steel substrate
• Masonry substrate
• Timber substrate

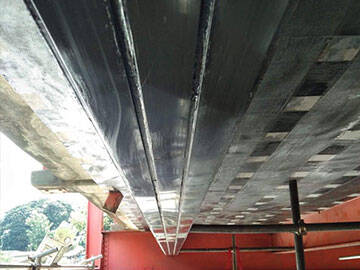

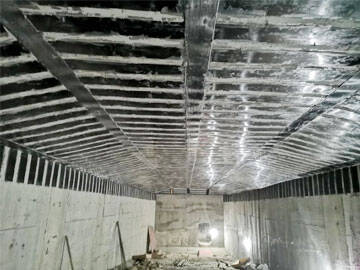

Construction Field of Carbon Fiber Plate Strengthening

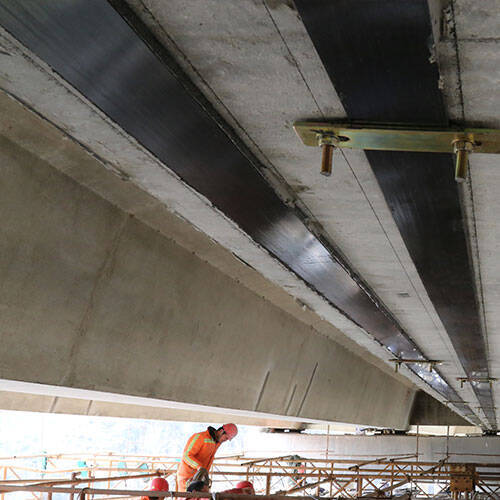

• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways
Construction Field of Carbon Fiber Plate Strengthening
• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways
Manufacturer Epoxy System
Manufacturer Epoxy System
How to Use Horse Carbon Fiber Plate
• Polish the surface of concrete surface
• Prepare ingredients
• Applying HM-120CP adhesive
• Installation Horse carbon fiber reinforced strip plate
• Maintenance
How to Use Horse Carbon Fiber Plate
• Polish the surface of concrete surface
• Prepare ingredients
• Applying HM-120CP adhesive
• Installation Horse carbon fiber reinforced strip plate
• Maintenance
HM-20 Unidirectional Carbon Fiber Wrap
HM-1.2T Unidirectional Carbon Fiber Strip
HM-MJ50/100 Prestressed CFRP Plate System
HM-120CP CFRP Strip Adhesive
Horse CFRP Plate's Date Sheet
HM-1.2T Technical Data Sheet.pdf
HM-1.4T Technical Data Sheet.pdf
| Item | HM-1.2T Carbon Fiber Plate | HM-1.4T Carbon Fiber Plate | HM-2.0T Carbon Fiber Plate | HM-3.0T Carbon Fiber Plate |
| Thickness(mm) | 1.2 | 1.4 | 2.0 | 3.0 |
| Length(m) | 100 | 100 | 100 | 100 |
| Width(mm) | 50、100 | 50、100 | 50、100 | 50、100 |
Density(g/cm3) | 1.6 | |||
| Base | Carbon fiber reinforced polymer with an epoxy resin matrix | |
| Shelf Life | Unlimited (no exposure to direct sunlight) | |
| Color | Black carbon fiber plate | |
| Tensile Strength | Mean Value | 3100MPa |
| Design Value | 2600MPa | |
| Modulus Of Elasticity | Mean Value | 165,000MPa |
| Design Value | 160,000MPa | |
Elongation at Break | 1.7% | |
| Thickness | 1.2mm, 1.4mm, 2.0mm, 3.0mm | |
| Temperature Resistance | ＞300° F(＞150℃） | |
| Fiber Volumetric Content | ＞68% | |
| Density | 0.058 lbs./in 3 (1.6g/cm3) | |

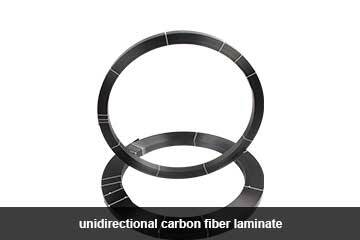

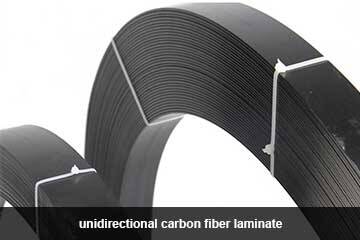

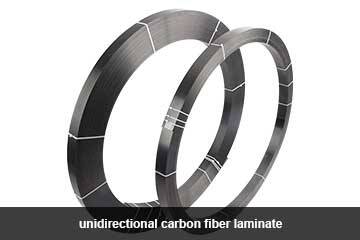

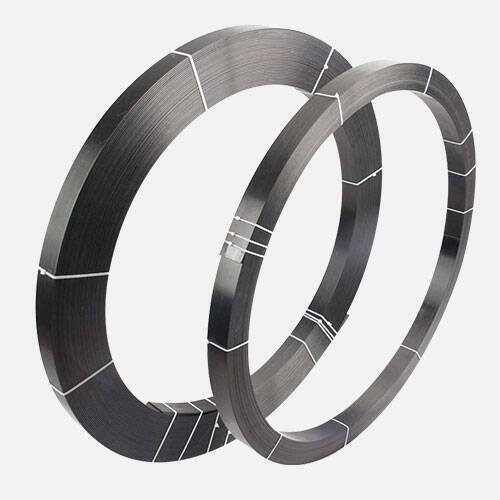

Package
The length of Horse carbon fiber plate is 100m, the width is divided into 50mm, 100mm; the thickness is divided into 1.2mm, 1.4mm, 2.0mm, 3.0mm. Roll into a ring and use a belt to bind. Other specifications can be customized.

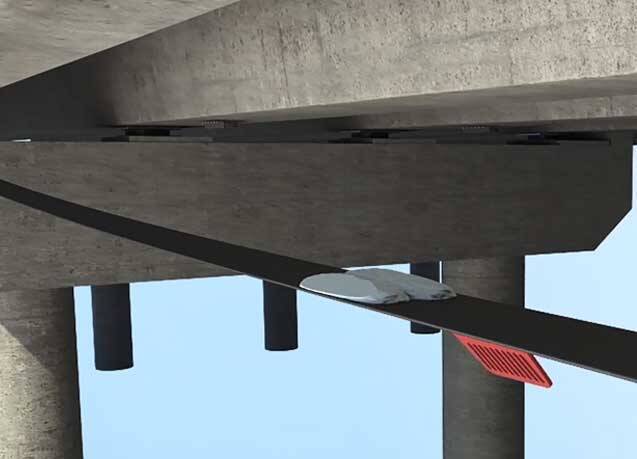

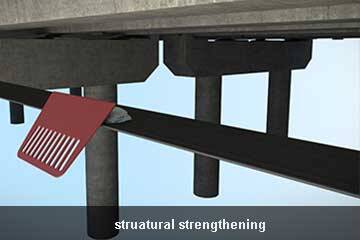

Operation Process of Horse CFRP Strip/Laminate/Plate Strengthening
Carbon Fiber Plate Strengthening Video(click it)
Setting line according to design;
Polish the surface of concrete surface to remove painting of
surface, blow out that floating dust with compressed air;
Prepare ingredients: agitate component A and B evenly in
packaging bucket by weighting in accordance with the weight
ratio A:B=2:1;
Applying adhesive: paste the above mixed glue compounds onto
the surface of carbon fiber strip evenly, please avoid bubbles;

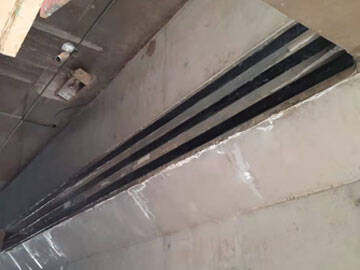

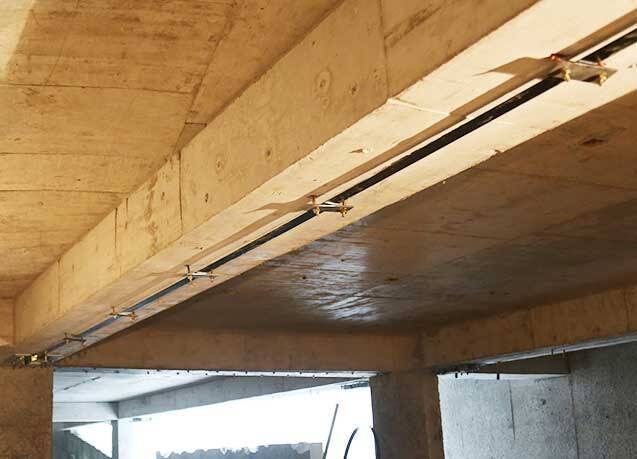

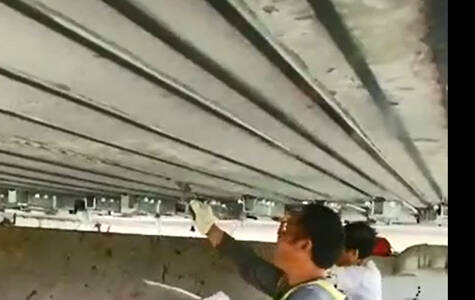

Installation: paste the carbon fiber plate onto the concrete surface
and fixed with steel strip;

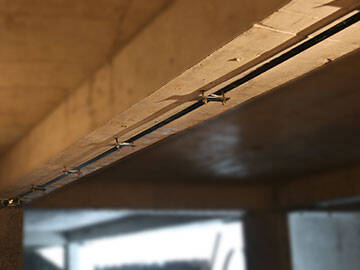

Remove excessive glue compounds around, and fix with steel
framework;
Maintenance: conservation time should be no less than 24 hours
at room temperature.
